Description
Technical Specifications
| AI by Recorder (Number of | 8 channels |
|---|---|
| AI by Camera (Number of | 32 channels |
| People Attributes | 9 human body attributes |
| Human Attributes | Top color, top type, hat, bag, age, gender and umbrella |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Camera | (human, motor vehicles, and non-motor vehicles); SMD |
| Perimeter Performance AI | Simultaneous mode: 32 channels, 10 IVS rules for each |
| by Recorder (Number of | channel |
| Perimeter Performance of AI by Camera (Number of |
32 channels |
| Access Channel | 32 channels |
| Network Bandwidth | and 1024 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; |
| Decoding Capability | 1080p@30 fps；32-channel D1@30 fps |
| Video Output | is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; |
| Face Detection | Simultaneous mode: 8 channels (up to 12 face images/s |
| Performance of AI by | each channel) |
| Recorder (Number of | Heterogeneous mode: 5 channels (up to 12 face |
| Channels) | images/s each channel) |
| Performance of AI by | 32 channels |
| Face Database Capacity | total capacity of 48 G. Name, gender, birthday, address, |
| Face Recognition | recorder),image stream: 32 face images/s; 8-channel FD |
| Performance of AI by | images/s |
| Recorder (Number of | Heterogeneous mode: 16-channel FD (by camera) + FR |
| Channels) | (by recorder),image stream: 16 face images/s; 5-channel |
| Performance of AI by | 32 channels |
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and |
| SMD Plus by Camera | 32 channels |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network Protocol | SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF (Profile S/profile T/Profile G); CGI; SDK |
| Browser | Chrome IE 9 or later Firefox |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <18 W (without HDD) |
| Net Weight | 6.40 kg (14.11 lb) (without HDD) |
| Gross Weight | 10.35 kg (22.82 lb) (without HDD) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Rack or desktop |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Playback Mode | play by frame 2. Full screen, backup (cut/file), partially |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Type M | odel |

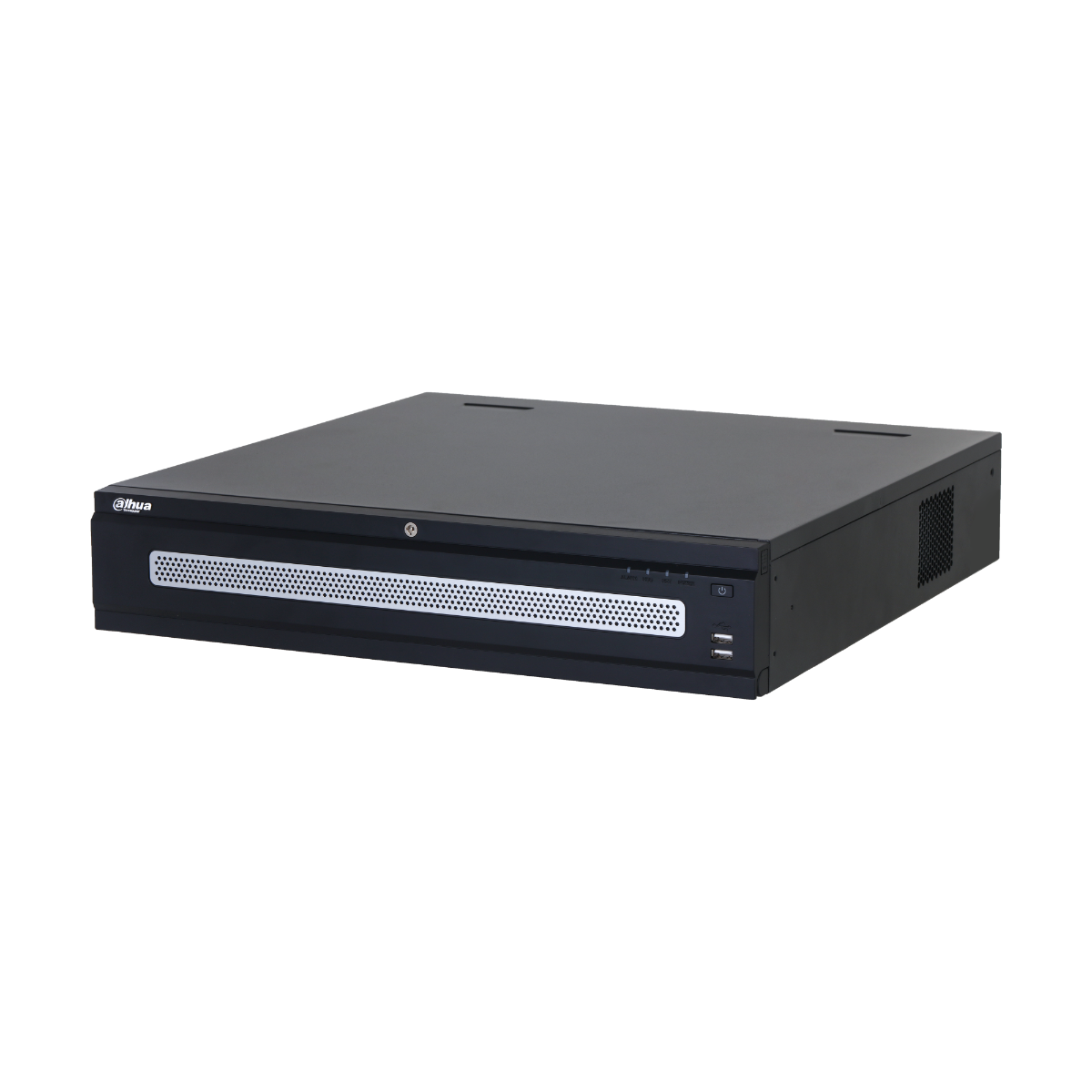

| AI Network Video D Recorder |
HI-NVR608H-32-XI |
| General Alarm | Motion detection; video tampering; video loss; scene |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 × A/B |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Network Port | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| 1 | Alarm In/Out |
| 3 | AUDIO OUT, RCA Co |
| 5 | Power Switch |
| 7 | USB Ports |
| 9 | HDMI Ports |
