Technical Specifications
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | 1st Screen: 1/4 2nd Screen: 1/4 |
| Third-party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| HDD Interface | 1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| PoE Port | 4 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Power Supply | 53 VDC, 1.226 A |
| Perimeter Performance AI by Recorder (Number of Channels) |
2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) |
4 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) |
1 channel (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) |
4 channels |
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) |
4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) |
4 channels |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 4 channels |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoin |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps |
| Power Consumption | Total output of NVR is <10 W(without HDD) Total output power of PoE is 36W,the maximum output power of asingle port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.88 kg (4.14 lb) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24″ × 9.16″ × 1.87″) |
| Packaging Dimensions | (W × L × H) 333 mm × 89 mm × 315 mm (13.11″ × 3.50″ × 12.40″) (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3- 2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Type | Model |

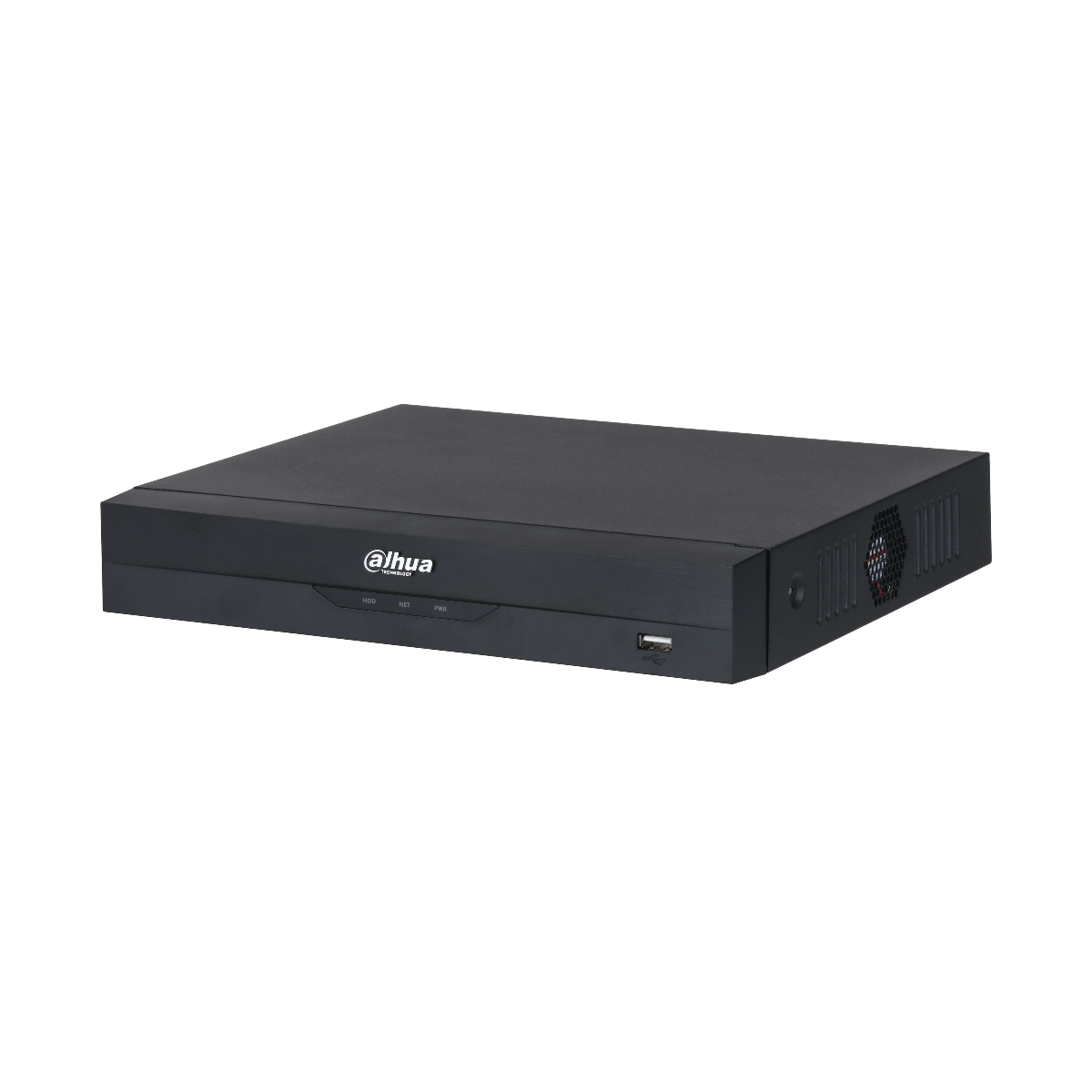

| 4 Channels WizSense NVR |
DHI-NVR4104HS- P-EI |

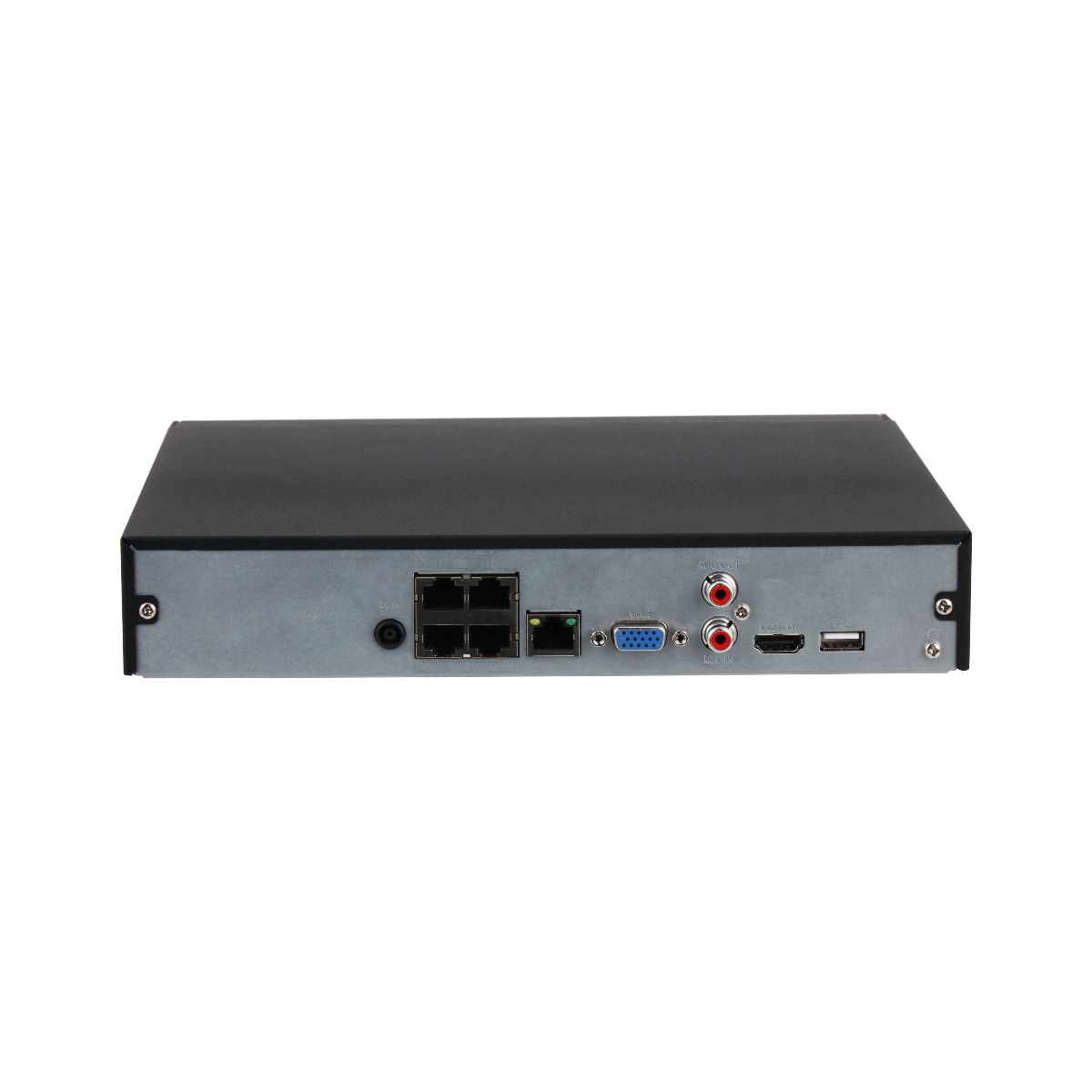

| 1 | Power Input |
| 3 | Network Port |
| 5 | AUDIO OUT, RCA Conne |
| 7 | HDMI Port |
| 9 | Ground |
