Description
Technical Specifications
| Video Linkage | Hub: Yes |
|---|---|
| Offline Cache | Hub: Stores up to 50 alarm messages. |
| Arm and Disarm | Hub: App, Keypad, remote control, card, scheduled |
| Remote Update | All: Cloud update |
| Low Battery Detection | All: Yes |
| User Management | installer) and |
| Logs | Hub: Up to 5, 000 entries |
| Measuring Range | Door Detector: –15 °C to +65 °C (+5 °F to +149 °F) |
| (Temperature) | PIR Detector: –15 °C to +65 °C (+5°F to +149 °F) (indoor) |
| Transmission Protocol | Hub: SIA, SoftGuard |
| Wireless Zone | Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 |
| Network Mode | Hub:Ethernet and Wi-Fi |
| Network Port | Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port. |
| Audio Output | Hub: 1 channel |
| Volume Control | Hub: Yes |
| Voice Broadcast | Hub: Local speaker |
| Detection Mode | PIR Detector: PIR |
| Sensitivity | PIR Detector: 3 levels adjustable |
| Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Movement Distance | Door Detector: < 40 mm (1.57″) |
| Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
| Two-way Digital | PIR Detector: Yes, no attenuation of detection distance |
| Temperature Compensation | in high temperature. |
| Scenario | Door Detector: Non-metal doors |
| Casing Material | All: PC + ABS |
| Certifications | 1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | All: 10%–90% (RH) |
| Carrier Frequency | All: 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | All: Limit 25 mW |
| Communication Mechanism | All: Two-way |
| Communication Distance | Door Detector: Up to 1,200 m (3937.01 ft) in an open |
| Encryption Mode | All: AES128 |
| Frequency Hopping | All: Yes |
| Wi-Fi Standard | Hub:IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | Hub:2400-2483.5 MHz |
| Wi-Fi Power Transmission | Hub:≤20 dBm@2400-2483.5 MHz |
| Type | Model |

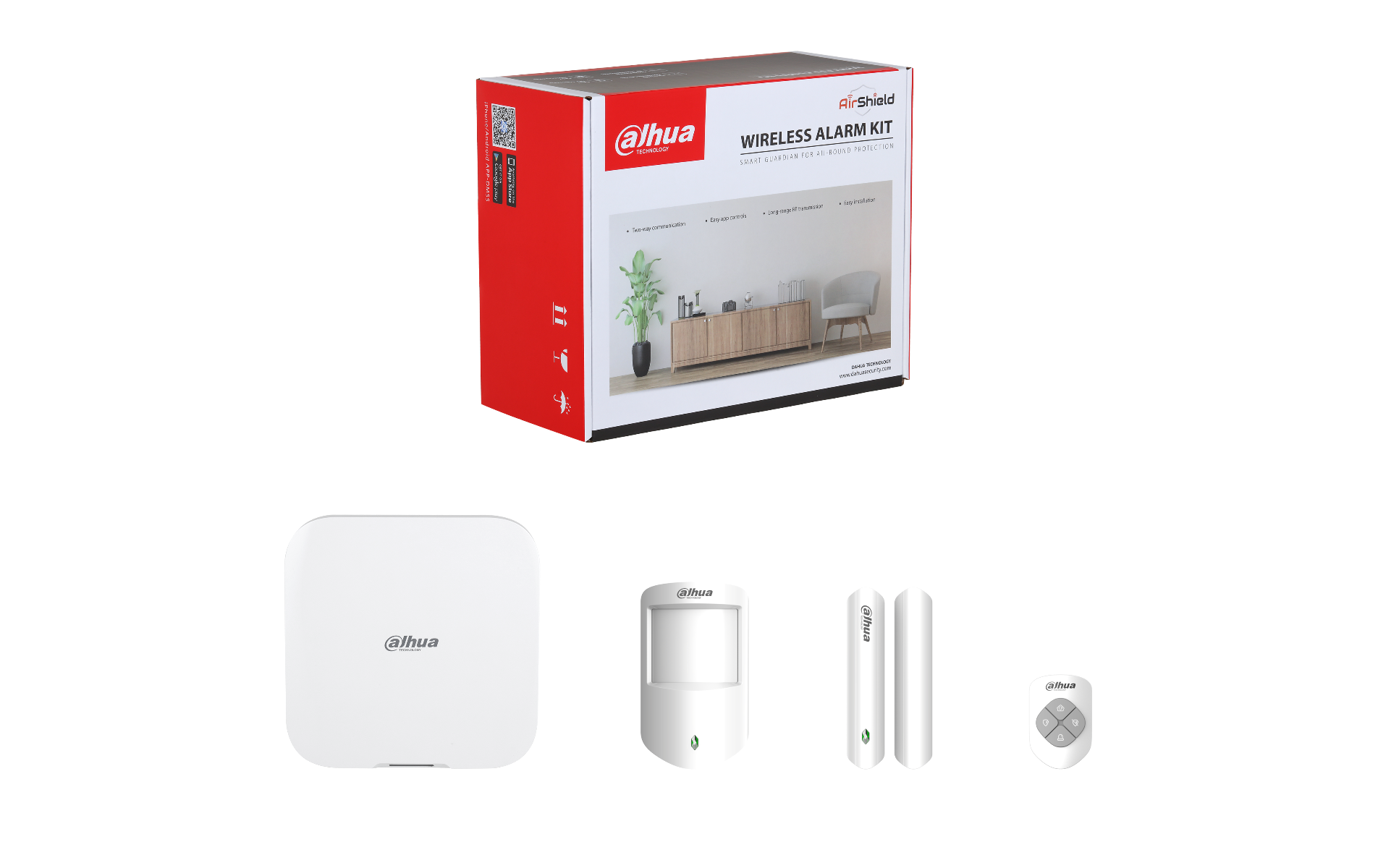

| Alarm KIT | Dahua Wireless Alarm KIT |
| Language | Hub: English |
| Power Supply | Keyfob: CR2032 battery |
| Standby Time | receiving center, the heartbeat interval is 1,800 seconds, |
| Power Consumption | Keyfob: Max. 100 mW |
| Operating Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | All: 10%–90% (RH) |
| Product Dimensions | 0.59″) (L × W × H) |
| Net Weight | Keyfob: 20 g (0.04 lb) |
| Gross Weight | Kit: 1.46 kg (3.22 lb) |
