Description
Technical Specifications
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Third-party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.12; CGI |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Disk Group | Yes |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| TV Output | Yes |
| Audio Input | 4-channel BNC (external) 32-channel BNC (coaxial audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| HDD Interface | 4 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s) |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto- detect |
| Camera Input | 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: 5M-N@(1fps–10fps); 4M-N, 1080p@ (1fps–15fps); 1080N, 720p, 960H D1, CIF@(1fps–25/30fps) Sub stream: D1,CIF@(1fps–15fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 2 HDMI, 1 VGA, 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI2 is configurable. |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | <22 W |
| Net Weight | 4.8 kg (10.58 lb) |
| Gross Weight | 7.1 kg (15.65 lb) |
| Product Dimensions | 1.5U, 440.0 mm × 420.2 mm × 76.0 mm (17.32″ × 16.54″ × 2.99″) (W × D × H) |
| Packaging Dimensions | 529.0 mm × 499.0 mm × 211.0 mm 20.83″ × 19.65″ × 8.31″ (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Installation | Rack or desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Type | Model |

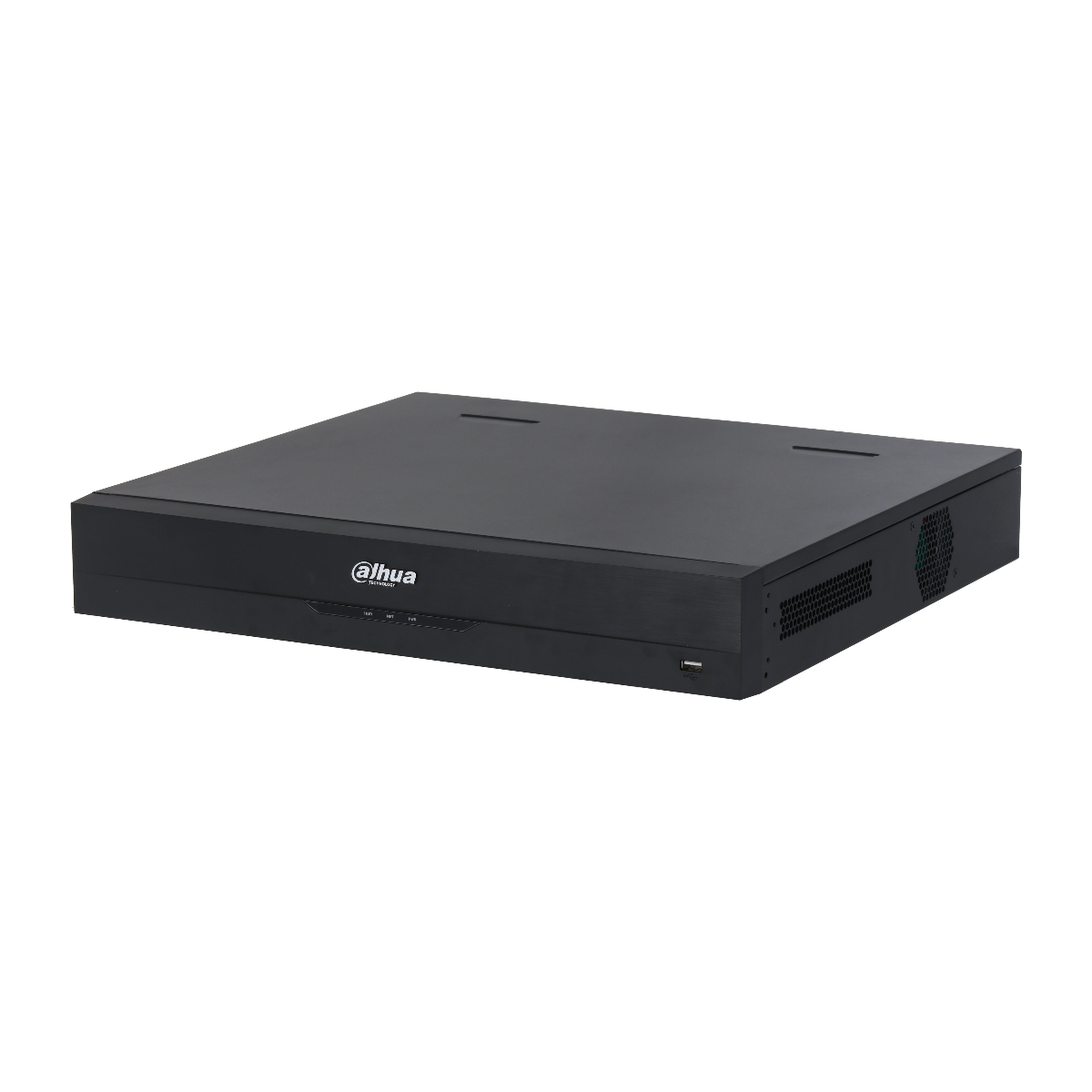

| 32 Channels WizSense XVR |
DH-XVR5432L-I3 |
