Thermal Cameras – Why, When, Where, Which
In the last few years Thermal Cameras have become more prevalent for a number of reasons. In this blog, we will try to highlight some of the Which, Why, When and Where you may use them, with some examples of success stories.
Technical Specifications
| Video Compression | H.265 |
|---|---|
| Frame Rate | 480 × 640@25fps |
| Picture Encoding Format | JPEG |
| Audible Alarm | Yes |
| Edge Storage | Micro SD Card (Max 256 GB, support SD card error alarm: No SD card alarm, insufficient SD card memory alarm) |
| USB | Micro USB |
| Power Supply | 5V DC or built-in power supply |
| Operating Time | ≥ 8 h Note: Battery life will be reduced if head detection, audible alarm or video recording are enabled. |
| Charging Time | ≤ 2.5 h |
| Power Consumption | < 1W |
| Screen Size | 2.4″ LCD |
| Resolution | 240 × 320 |
| Operating Temperature | 10°C–35°C (50°F–95°F) |
| Operating Humidity | ≤ 90% |
| Ingress Protection | IP54 Drop test height: 2 m (6.56 feet) |
| Product Dimensions | 192.4 mm × 62.5 mm × 72.2 mm (7.6″ × 2.5″ × 2.8″) (L × W × H) |
| Detector Type | Vanadium Oxide Uncooled Focal Plane Detector |
| Effective Pixels | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | ≤ 50mK@f/1.0 |
| Focal Length | 3.5 mm |
| Field of View | H: 37.8°; V: 50.6° |
| Focus Mode | Athermalized |
| Aperture | F1.0 |
| Digital Detail Enhancement (DDE) |
Yes |
| Noise Reduction | Yes |
| Color Palettes | 4 (Whitehot/Blackhot/Rainbow/Ironbow) |
| Temperature Range | 30°C–45°C (86°F–113°F) |
| Temperature Accuracy | ±0.5°C |
| Measurement Distance | 0.5 m–1.5 m |
| Temperature Mode | Center spot and maximum temperature monitoring; AI head detection; |
| Packaging Dimensions | Camera with packaging: 239 mm × 147 mm × 109 mm (9.4″ × 7.0″ × 4.3″) (L × W × H) Protective box: 578 mm × 313 mm × 259 mm (22.7″ × 12.3″ × 10.2″) (L × W × H) |
| Net Weight | ≤ 0.35 kg (0.77 lb) |
| Gross Weight | ≤ 1 kg (2.2 lb) |
| Power Adapter | Included |
| Certifications | CE: EN 55032:2015; EN 61000-3-3:2013+A1:2019; EN 50130-4:2011/A1:2014; EN55024:2010/A1:2015; EN55035:2017 FCC: CFR 47 FCC Part 15 subpart B, 2019; ANSI C63.4- 2014 UL: IEC 62368-1:2014 (Second Edition) |
| Type | Model |

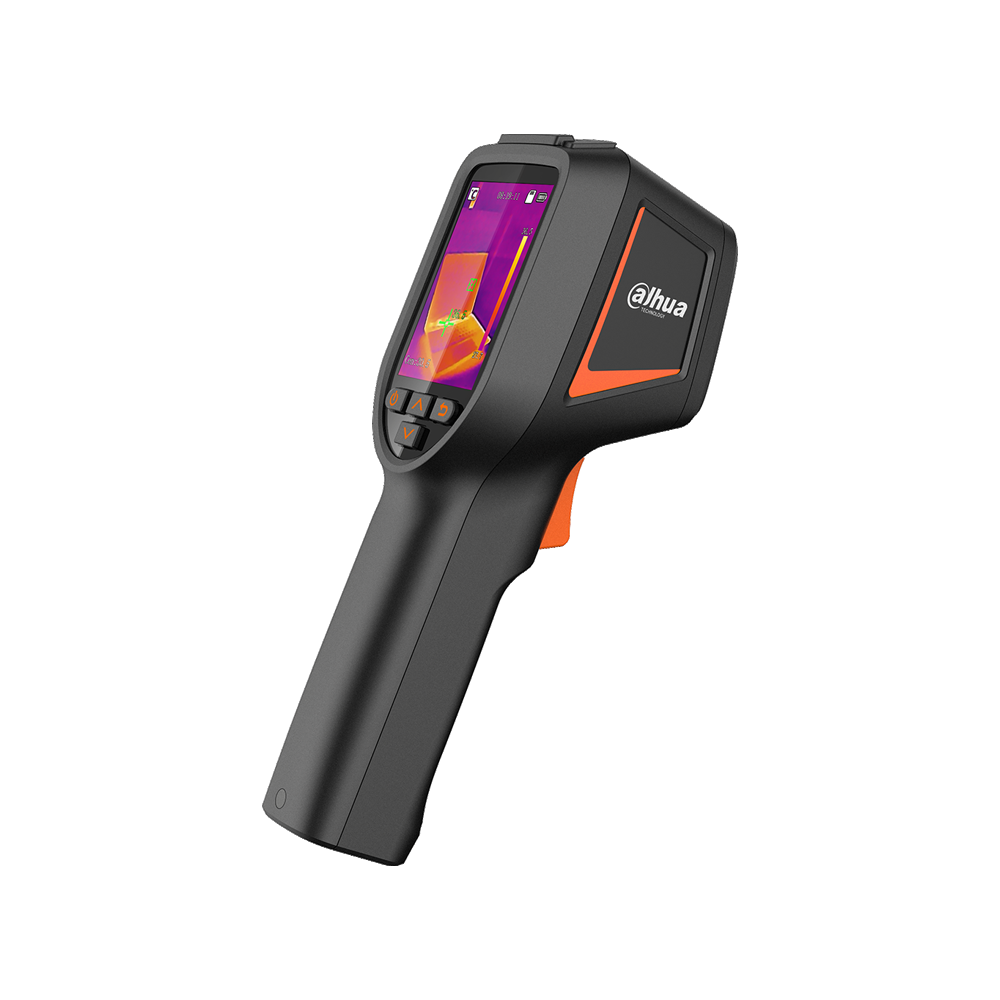

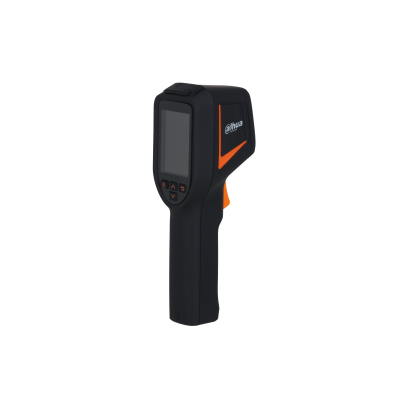

| Thermal Camera |
DH-TPC-HT2201 |
