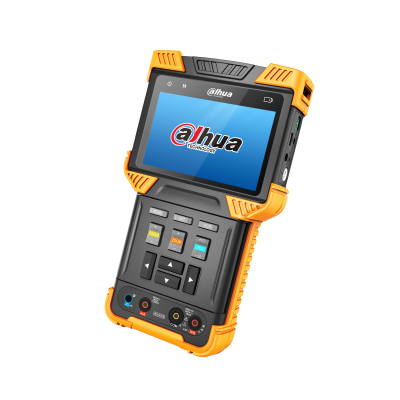

Description
| Network port | 2* 10/100M/1G RJ45(LAN/PSE, PD) | |
| BNC port | 1* video in(HDCVI/TVI/AHD/CVBS), 1* video out | |
| Function port | 1* RS485 output, 1* DC12V output(charge), 1* Mini USB connector, 1* 3.5mm audio in, 1* reset button, 1* power switch | |
| IPC Test | ||
| IP camera type | ONVIF (with PTZ control); RTSP; RTP | |
| IP Camera test | Support auto-scan the whole network to discover ONVIF cameras,; Support manually adding an IP camera ; Support UDP/TCP displaying real-time video; Support 8 level digital zoom, snapshot, record video(H.264/H.265), photo view and video play back | |
| Analog Video Test | ||
| Format | HDCVI/ AHD/ TVI/ CVBS | |
| HDCVI camera test | 1-ch BNC in, highest-resolution: Support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 25fps, 30fps |
|
| TVI camera test | 1-ch BNC in, highest-resolution: support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2048×1536 18fps, 25fps, 30fps/ 2560×1440 15fps, 25fps, 30fps/ 2592×1944 12fps, 20fps |
|
| AHD camera test | 1-ch BNC in, highest-resolution: Support 1280x720P 25fps, 30fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 15fps, 18fps, 25 fps, 30 fps |
|
| CVBS camera test | 1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt) | |
| Camera test | Real time video, HD coaxial PTZ control, RS485 control, audio test, Support 8 level digital zoom, snapshot, record video, photo view and video play back | |
| PTZ Control | ||
| Protocol | Compatible with more than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | |
| Baud rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps | |
| Cable Tester | ||
| Network cable | TDR method; Measurement resolution: 0.1m, accuracy: ≤1m | |
| Tools | ||
| Network tool | IP address scan, Ping test, DHCP server, etc. Ethernet link detection; Ethernet loop detection; Data link quality detection; Ethernet flow detection; | |
| DMM (digital multi-meter) | AC/DC Voltage, AC/DC current, Resistance, Capacitance, Diode forward voltage, Open and short testing; | |
| Data monitor | Captures and analyzes the command data from controlling device via RS485 | |
| LED Flashlight | 2*35lm LED light, astigmatism | |
| Audio test | 3.5mm audio port is used to test microphones or other audio devices | |
| USB storage | Mini USB port can be used for USB storage devices | |
| System upgrade | Tester can be upgrade online through the software upgrade | |
| System Information | ||
| Screen | 4.0 inch TFT 800xRGBx480(WVGA) resolution, 16.7Mcolor, backlight brightness adjustable |
|
| Storage capacity | Build-in 8G flash | |
| Operation setup | Supporting a variety of languages, such as English, Chinese, Czech, Germany, Turkish, Hebrew, Spanish, French, Romanian, Serbian, etc. | |
| Auto power off | Disable/ 5~60 minutes | |
| Keyboard Tone | Enable/ Disable | |
| Power | ||
| Charger | PoE power injector, output 48V/15W, input AC100~230V 50~60Hz | |
| Battery | 7.4V polymer lithium ion battery, 22.2Wh | |
| Rechargeable | After charging 3~4 hours, normal working time 8 hours | |
| PoE power out | 802.3at, 25.5W Max | |
| DC12V power out | Max. DC12V 2A output | |
| Other | ||
| Working temperature | -10℃~+55℃(+14℉~+131℉) | |
| Working humidity | 30%~90% | |
| Casing | Plastics | |
| Dimensions | 190mmx113mmx37mm(7.48”x4.45”x1.46”) | |
| Net weight | 0.5kg(1.1lb) | |
| Packaging dimensions | 275mmx170mmx116mm(10.83”x6.69”x4.57“) | |
| Gross weight | 1.6kg(3.53lb) | |
| Certifications | ||
| Certifications | CE/FCC | |
Technical Specifications
| Operation System | Linux |
|---|---|
| Language | Multi-language interface: English, Chinese, Spanish, French, German, Turkish, Russian, Czech, Serbian, Portuguese, Polish, Romanian, Hebrew, Japanese, and Persian |
| Operation Mode | Button and keyboard |
| Auto Standby/Shutdown | Yes |
| Keyboard Sound | Enable/Disable |
| Screen | 4.0″ TFT screen, 800 × 480 resolution |
| Keyboard | Controlling keyboard: 13 keys of the main keyboard, and 45 keys of the flip keyboard Others: Power button, reset button |
| LED Indicator Light | 2 * 35lm lights |
| Update | Online and local update |
| Camera Access | ONVIF |
| Resolution | 1MP, 1.3MP, 2MP, 3MP, 4MP, 5MP, 6MP, 8MP, and 12MP |
| Camera Initialization | Yes |
| Video Display | Live view, snapshots, records, digital zoom, and H.264/H.265 decoding |
| Function Control | Support IPC modifications such as resolution, IP, and account password, and restoring IPC to factory settings |
| Format | HDCVI, HDTVI, AHD, and CVBS (NTSC, PAL) |
| Resolution | HDCVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps, 6MP@20 fps, 4K@12.5 fps/15 fps HDTVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps AHD: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps CVBS: NTSC, PAL |
| Function Control | OSD menu display and PTZ control |
| Video Display | Live view, snapshots, records, and digital zoom |
| Video Signal Generator | Generate PAL and NTSC video test signals Generate HDCVI, HDTVI, and AHD video test signals with 720/1080P |
| Communication Protocol | More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan |
| Baud Rate | 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, and 19200 bps |
| ESD | Air discharge: ±8KV Contact discharge: ±6KV |
| Audio Test | 1 channel audio input test and 1 channel audio output test |
| Camera Power Supply | 12V/2A DC power output to the camera |
| Network Test | IP address scanning, and Ping test |
| Voltage Test | Display voltage, data transmission, and signal strength of PoE/PSE device |
| Data Monitor | Receive and display protocol data with a RS–485 cable |
| Network Cable Test | Test the length and attenuation of a network cable Test range: 1–130 m (3.28–426.51 ft) (The maximum length varies depending on the material of the cable) |
| Digital Multimeter | Tests of AC/DC voltage, AC/DC current, resistance, capacitance, diode, and circuit conductivity |
| Certifications | CE: EN 55032 FCC: FCC Part 15 Subpart B |
| Power | 1 standard PoE charging, IEEE802.3af 1 power output , 12V/2A DC |
| Audio | 1 audio input 1 audio output |
| USB | 1 USB Mini-B |
| Ethernet | 2 RJ45 10M/100M/1G |
| RS–485 | 1 |
| Digital Multimeter Port | 3 |
| Charging | PoE 48V-0.32A |
| Battery | Dedicate battery, replaceable, 7.4V polymer lithium ion batteries, up to 22.2Wh, working for about 8 hours |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 30%–95% (RH) |
| Appearance Color | Yellow |
| Dimensions | 193.0 × 115.0 × 37.1 mm (7.8″ × 4.53″× 1.48″) |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 1.40 kg (3.09 lb) |
| Type | Part Number |
| Tool Series | DH-PFM900-E |
| PFM900-E | General integrated mount tester |
| Integrated Mount Tester | 1 |
| Lanyard of the Tester | 1 |
| Tool Bag | 1 |
| Lanyard of the Tool Bag | 1 |
| User Manual | 1 |
| Network Cable | 1 |
| Coaxial Cable | 1 |
| USB Cable | 1 |
| RS–485 Cable | 1 |
| RS–485 Terminal | 1 |
| Power Output Cord | 1 |
| Audio Cable | 1 |
| Multimeter Probes | 1 |
| PoE Power Injector | 1 |
| Charging Cord | 1 |
