Description
Technical Specifications
| Image Sensor | 1/2.7″ CMOS |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0007 lux@F1.4 (B/W, 30 IRE) |
| S/N Ratio | >56 dB |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED); 4 (Warm light) |
| Angle Adjustment | Tilt: 0°–75° |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: H: 110°; V: 58°; D: 132° |
| Iris Control | Fixed |
| DORI | Lens |
| 2.8 mm | 84.8 m |
| ( 278.22 ft) | ( 111.22 ft) |
| 3.6 mm | 98.7 m ( 323.82 ft) |
| SMD | SMD 4.0 |
| AcuPick | devices to accurately match targets, such as people and |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Type | Model |

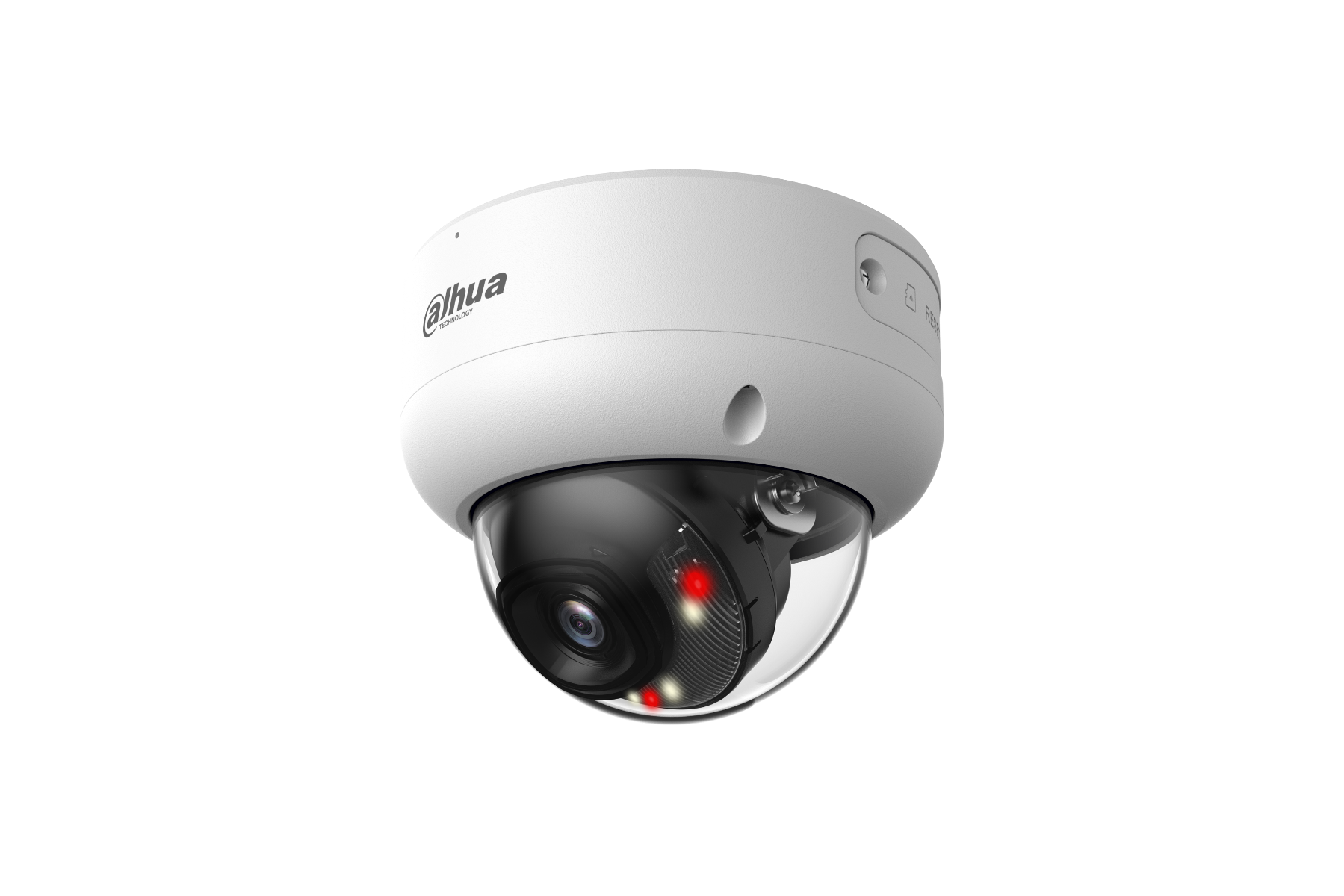

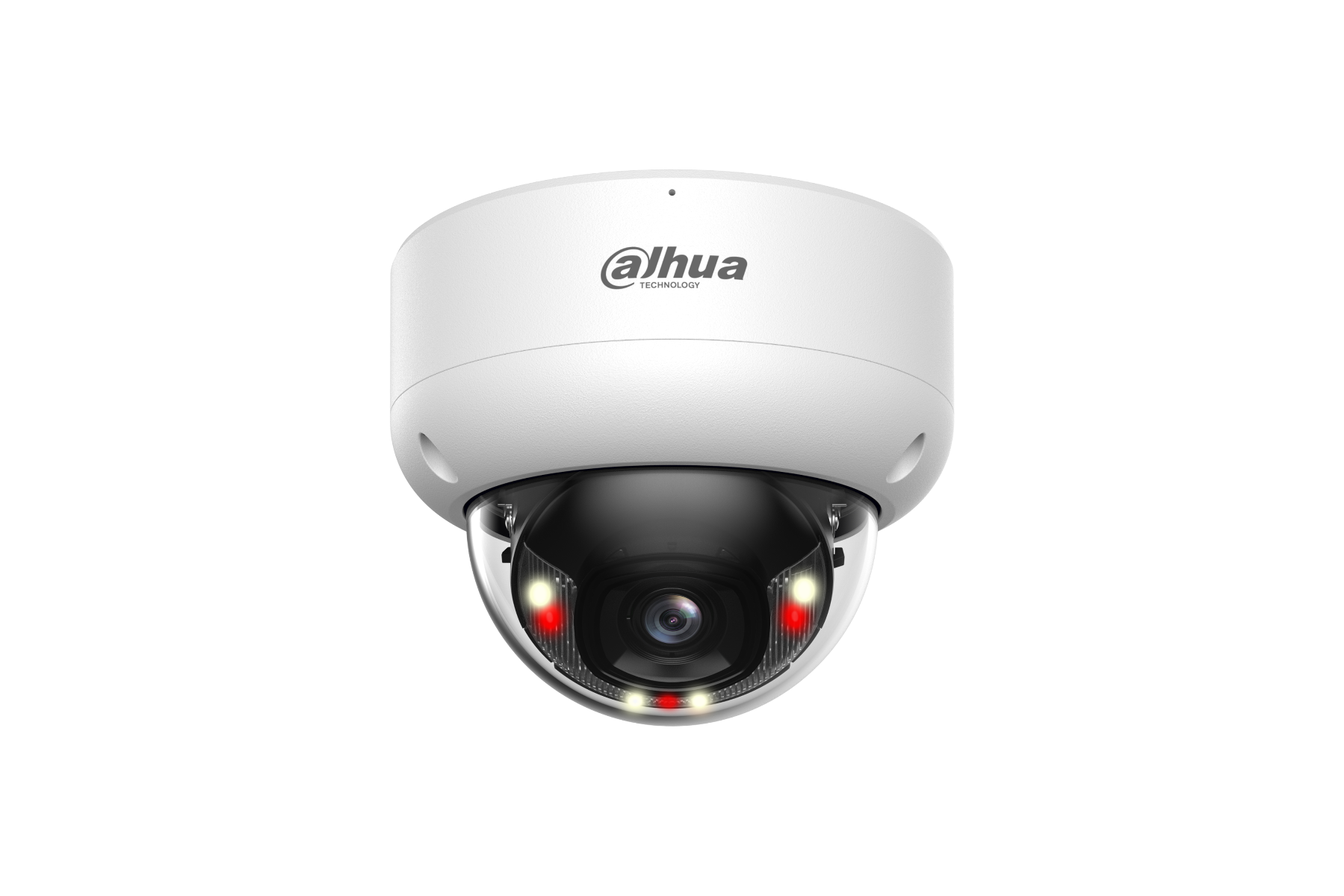

| IP CAMERA | DH-IPC-HDBW3849E-S-IL |
| DH-PFB220C | Ceiling Mount Bracket |
| DH-PFA109 | Mount Adapter |
| DH-PFB305W | Wall Mount Bracket |
| DH-PFA151 | Corner Mount Bracket |
| DH-PFA150 | Pole Mount Bracket |
| DH-PFA152-E | Pole Mount Bracket |
| Accessories (Optional) | DH-PFB203W |

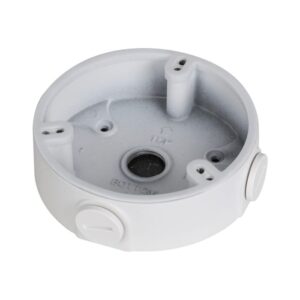

| DH-PFA136 | Junction Box |
| DH-PFM321-EN | DC12V1A power adapter |
| DH-PFM321D-EN | DC12V 1A power adapter |
| DH-PFM320D-EN | DC12V2A power adapter |
| PFM900-E | Integrated Mount Tester |
| DHI-TF-P100/512GB | MicroSD Card |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Cyber Security | logs;IP/MAC filtering;Generation and importing of X.509 |
| DH-PFB220C Ceiling Mount Bracket |
DH-PFA109 Mount Adapter |
| DH-PFA151 Corner Mount Bracket |
DH-PFA150 Pole Mount Bracket |
| DH-PFB203W Wall Mount Bracket |
DH-PFA136 Junction Box |
| DH-PFM321D-EN DC12V 1A power adapter |
DH-PFM320D-EN DC12V2A power adapter |
| Power Supply | 12 VDC/PoE (802.3af) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
