Dahua
In stock
£158.40 ex VAT
£190.08 inc VAT

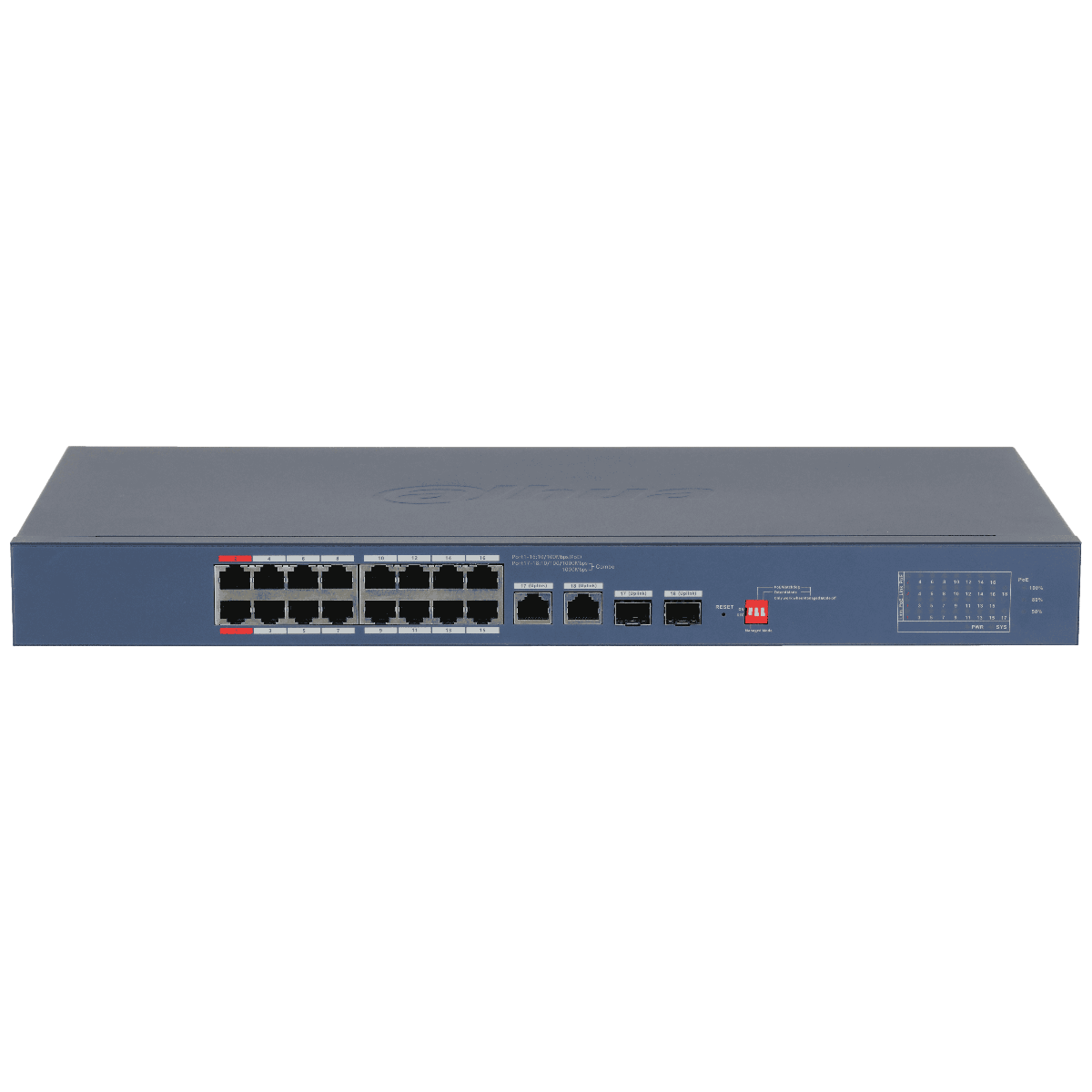

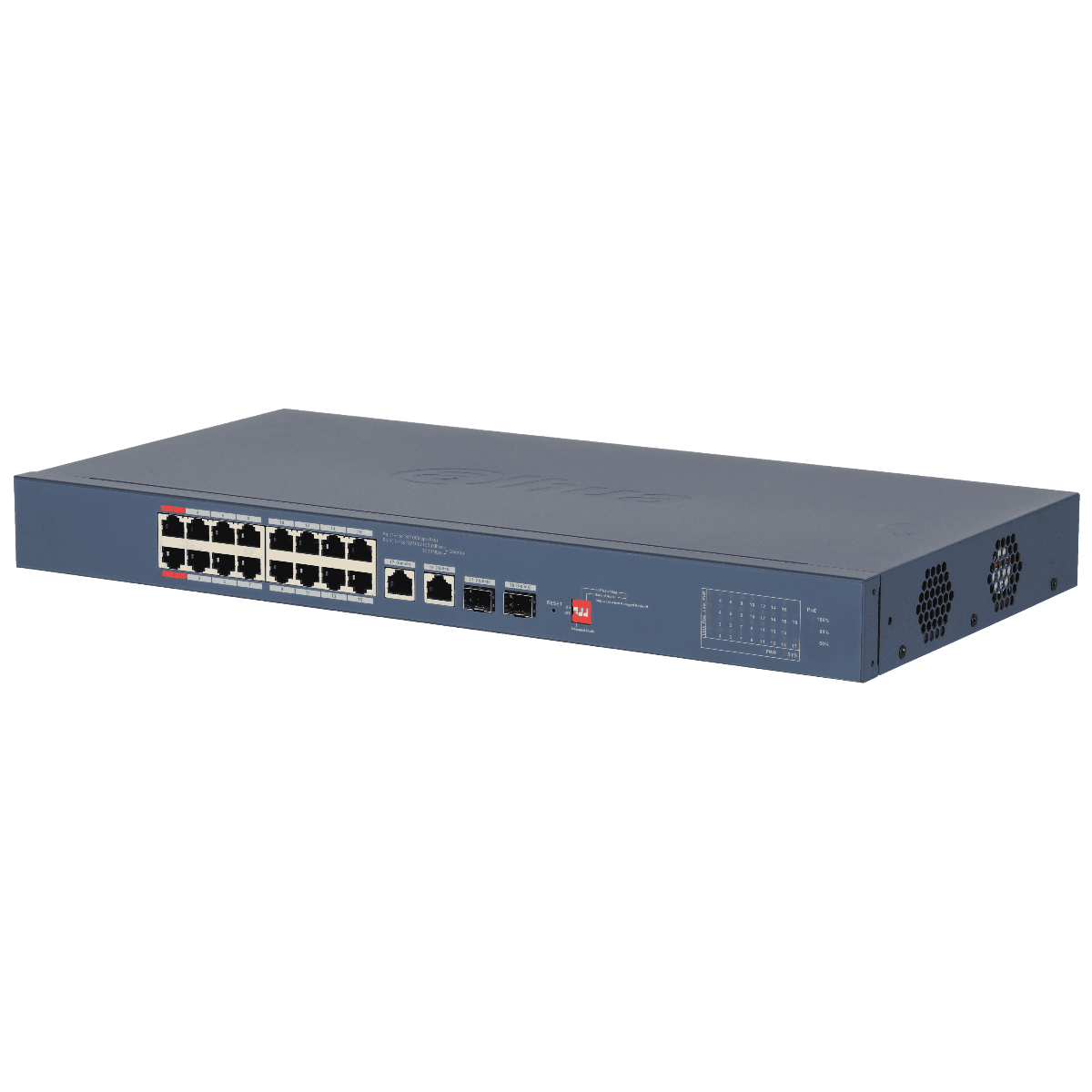

> 16x 10/100 Mbps PoE Ports, 2x Gigabit combo ports
> 135 W total PoE budget, 802.3af/at on all PoE port, additional 802.3bt on Red port
> DIP switch to fast turn ON/OFF working mode of Cloud-Managed, PoE Watchdog, 250 Meter Long Distance PoE
> –10°C to 55°C wide working temperature
> VLAN, Loop protection
> Web managed and centralized cloud management through the DoLynk app and performs real time monitoring of the network
Order now for delivery Tuesday 27 October on orders over £300
Installer or electrician? Apply for a trade account
| Layer | Layer 2 |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Description of Function Slots |
Port 1-16: 16 × RJ45 10/100 Mbps(PoE) Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo) Port 17-18: 2 × SFP 1000 Mbps(Combo) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |

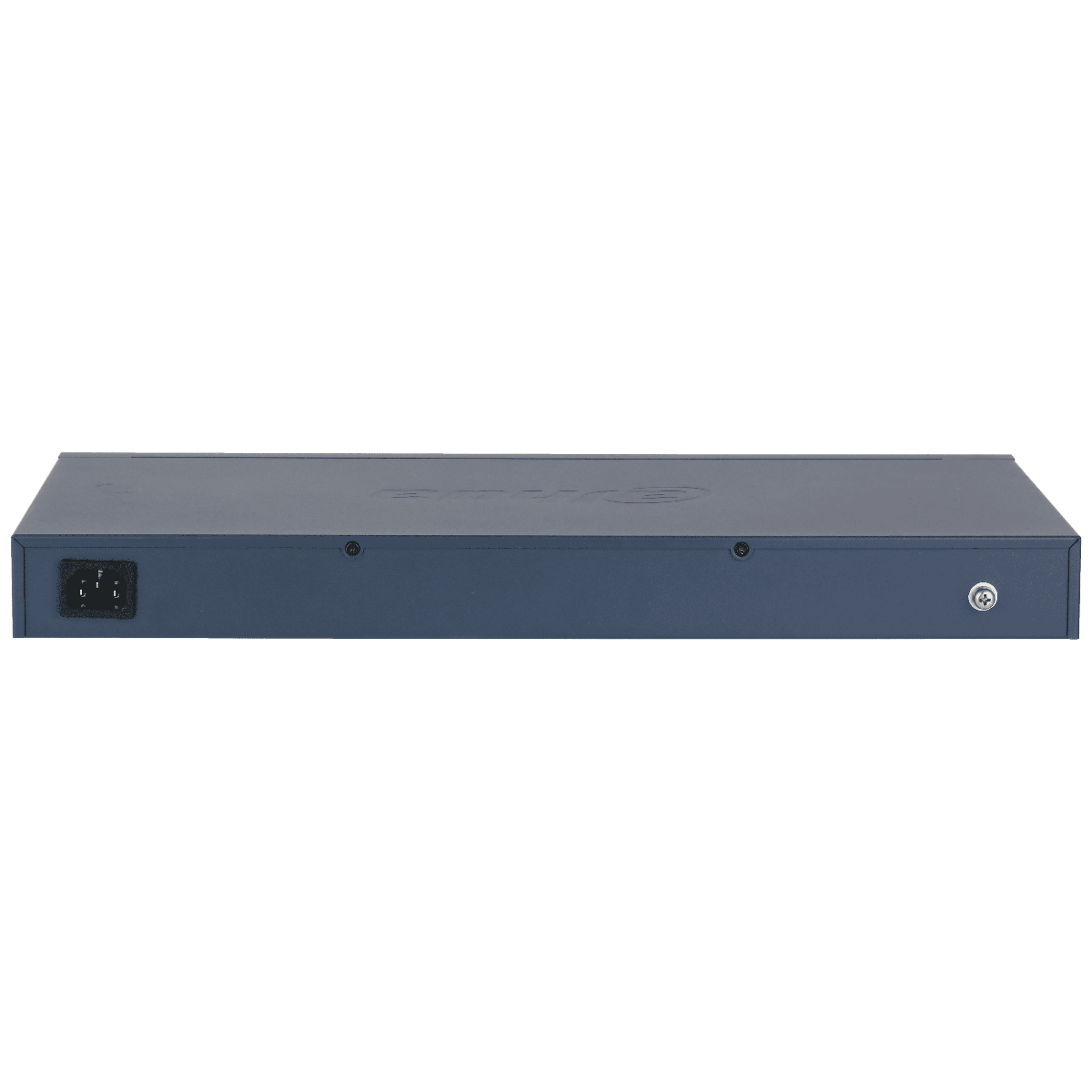

| Power Supply | Built-in power supply: 100–240 VAC, 47–63 Hz, max 3 A |
| Power Consumption | Idling: 3 W Full load: 141.8 W |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV Differential mode: 1 kV |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.1 kg (6.83 lb) |
| Product Dimensions | 440 mm × 228.81 mm × 43.65 mm ( × 9.01″ × 1.72″) (L × W × H) |
| Packaging Dimensions | 540 mm × 342 mm × 90 mm (21.26″ × 13.46″ × 3.54″) (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Certifications | CE |
| PoE | Yes |
| PoE Power | Port 3-16≤30 W, port 1-2≤90 W, total≤135 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption Management |
PoE power consumption management PoE power on/off turns off PoE if overload is detected |
| PoE Pin Assignment | Port 1-2: 1, 2, 4, 5 (V+) , 3, 6, 7, 8 (V-) Port 3-16: 1, 2, (V+), 3, 6, (V-) |
| Long Distance PoE Transmission |
Yes |
| DIP Switch | Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| MTBF | 1626836 h |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| VLAN Number | 32 |
| VLAN Function | IEEE 802.1Q VLAN |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror | Local Port Mirroring N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| Packing List | 1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Rack-mounting Kit |
| Type | Model |
| SFP module | GSFP-1310T-20-SMF |
| GSFP-1310R-20-SMF | 1.25G 1550/1310nm,20km,LC, Single-mode |
| GSFP-1310-20-SMF | 1.25G 1310nm,20km,LC, Single- mode |
| GSFP-850-MMF | 1.25G 850nm,550m,LC, Multi- mode |
| Cable(m) | Load Capacity(W) |
| 100 | 71.3 |
| 150 | 62 |
| 200 | 51 |
| 250 | 40 |
| 100 | 46 |
| 150 | 42 |
| 200 | 37 |
| 250 | 32 |
| 100 | 25.5 |
| 150 | 25.5 |
| 200 250 |
25.5 24 |
| Brand | Dahua |
|---|---|
| Number of ports | 16 ports |
| PoE | PoE (15W) |
| Management | Cloud managed |
| Port speed | Gigabit |
