Description
Technical Specifications
| Encryption Mode | AES128 |
|---|---|
| Power Supply | CR123A battery |
| Power Consumption | Max. 125 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 100.2mm × 20.8mm × 20.3mm (3.94”× 0.82” ×0.80”) (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8mm (5.31″ × 3.88″ × 1.09″) (L × W × H) |
| Installation | Bracket mount |
| Net Weight | 70 g (0.15 lb) |
| Gross Weight | 115 g (0.25 lb) |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-2-6:2008 Security Grade 2 Environmental Class II |
| Battery Life | 4 years (The external input type is NO) 2 years (The external input type is NC or Pulse) |
| Casing Material | PC + ABS |
| Indicator Light | 1 × green alarm indicator |
| Button | 1 × power button |
| Tamper Alarm | Yes |
| Remote Upgrade | Cloud update |
| Low Battery Alarm | Yes |
| Test Mode | Yes |
| Search | Signal strength detection |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Distance | Up to 1,200 m (3,937.01 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Measuring Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Measuring Precision | ±1 °C (±1.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Sensor | Reed Switch |
| Scenario | Non-metal doors |
| Movement Distance | < 40 mm (1.57″) |
| External Zone | 1-channel dry contact input |
| Type | Part Number |

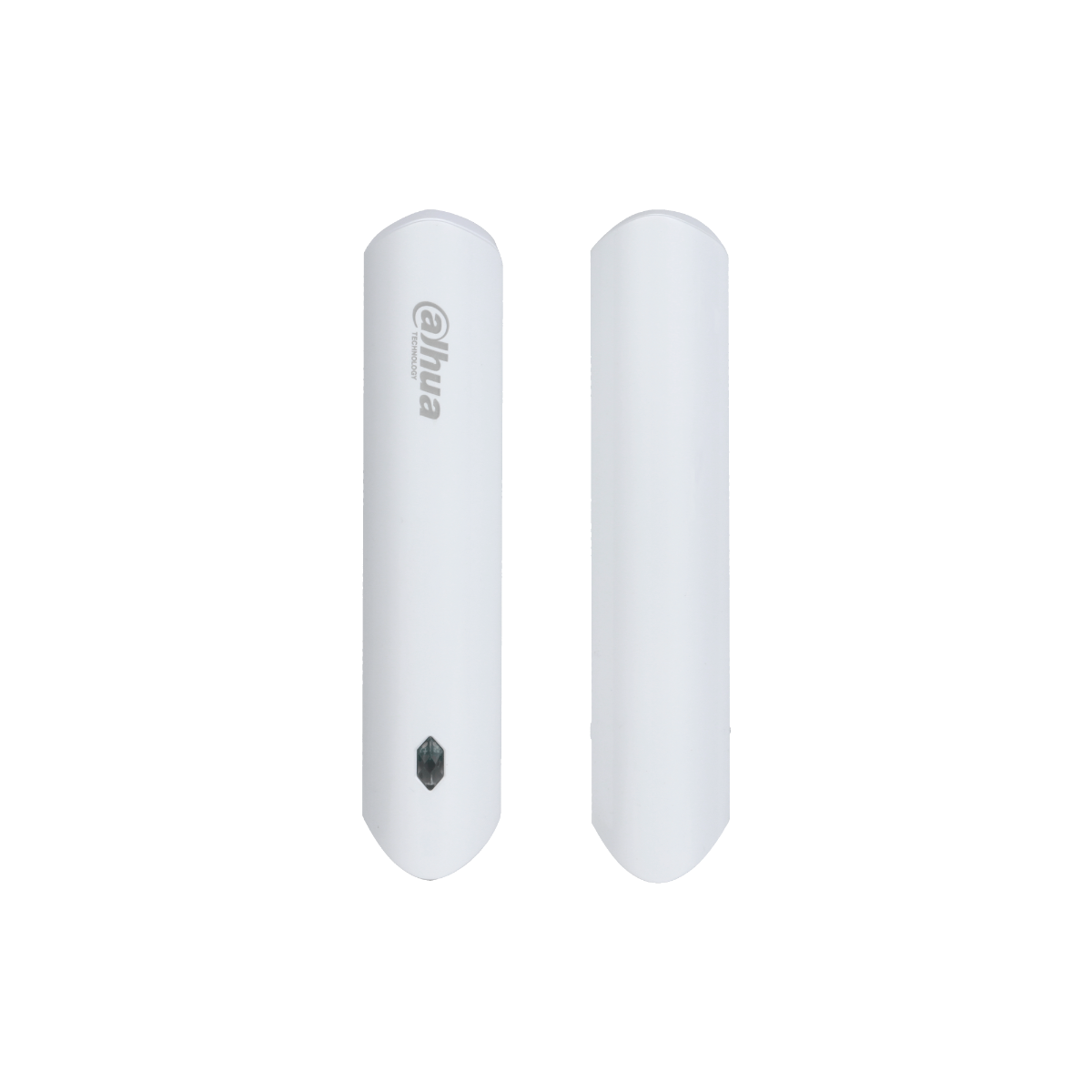

| Wireless door detector | DHI-ARD323-W2(868) |
