Technical Specifications

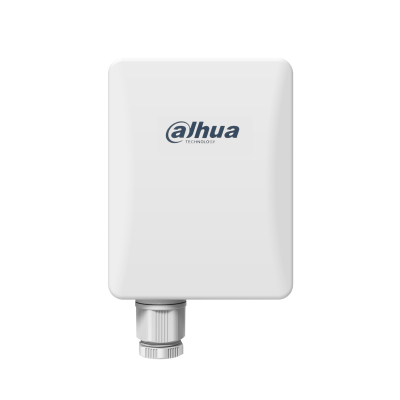

| Model | DH-PFWB5-30n |
|---|---|
| WLAN Standard | IEEE802.11 a/n |
| Radio Mode | MIMO 2×2 |
| Radio Frequency Band | Frequency 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz) |
| Transmit Power | Up to 29 dBm (country dependent) |
| Receive Sensitivity | Varying between -97 and -75 dBm depending on modulation |
| Channel Size | 5,10, 20, 40 MHz |
| Modulation Schemes | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) |
| Data Rates | 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Error Correction | FEC, Selective ARQ |
| Duplexing Scheme | Time division duplex |
| Transmission Distance | 0-3km (recommended), max≥5km |
| Type | Integrated directional panel antenna |
| Gain | 15dBi |
| Interface | 10/100 Base-T, RJ45 |
| Wireless Operating Modes | Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT) |
| Wireless Techniques | Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) |
| Wireless Security | WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation |
| Wireless QoS | 4 queues prioritization on TDMA |
| Network Operating Modes | Bridge, router iPv4, router IPv6 |
| Network Techniques | Routing with and without NAT, VLAN |
| WAN Protocols | Static IP, DHCP client, PPPoE client |
| Services | DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog |
| Management | HTTP(S) GUI, SSH, SNMP read, Telnet |
| Tools | Site survey, link test, antenna alignment, spectrum analyzer, ping & trace |
| Dimensions | 128 mm (Length)× 97mm (width )× 40mm (height ) |
| Weight | 200 g |
| Mounting | Combination wall / pole mount included |
| Power Supply | 12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package) |
| Power Source | 100 – 240V AC |
| Power Consumption (max) | 4.5W |
| Operating Temperature | -30°C ~ +70°C |
| Humidity | 0 ~ 90 % (non-condensing) |
| System Monitoring | SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap |
| Certification | FCC/CE |
| Frequency Range | 5.1 – 5.9 GHz |
| Gain | 15dBi |
| Polarization | Dual linear |
| Cross-pol Isolation | 27dBi |
| VSWR | <1.4 |
| Azimuth Beam Width (H pol) | 30° |
| Azimuth Beam Width (V pol) | 30° |
| Elevation Beam Width | 30° |
| Receive Sensitivity (dBm) |
802.11n/ TDMA (20/40 MHz) |
| -97 | -95 |
| 30 Mbps |
60 Mbps |
| -94 | -92 |
| 802.11a | 6 Mbps |
| -97 | -97 |
| Output Power (dBm, combined) |
802.11n/ TDMA (20/40 MHz) |
| 29 | 28 |
| 30 Mbps |
60 Mbps |
| 28 | 28 |
| 802.11a | 6 Mbps |
| 29 | 29 |
