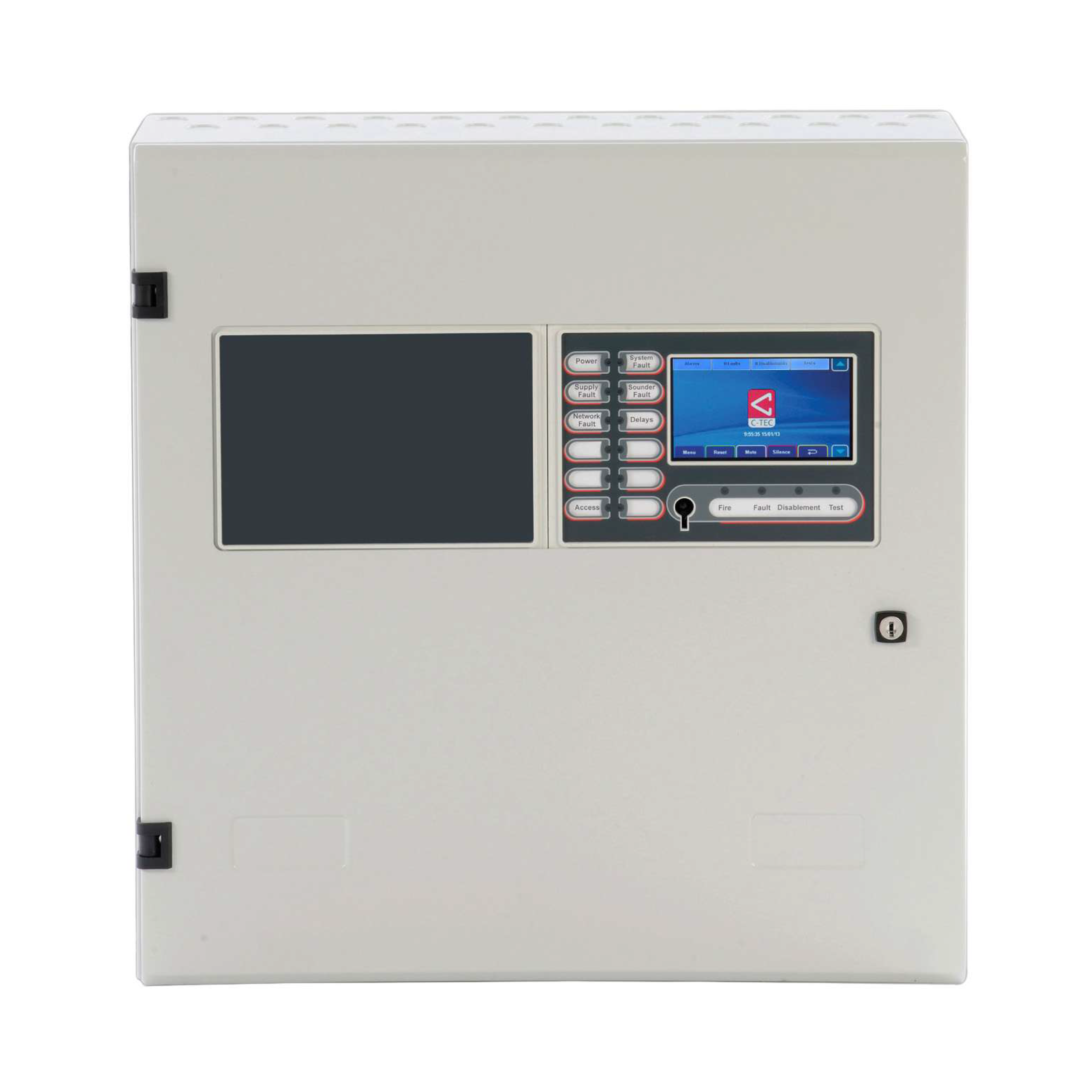

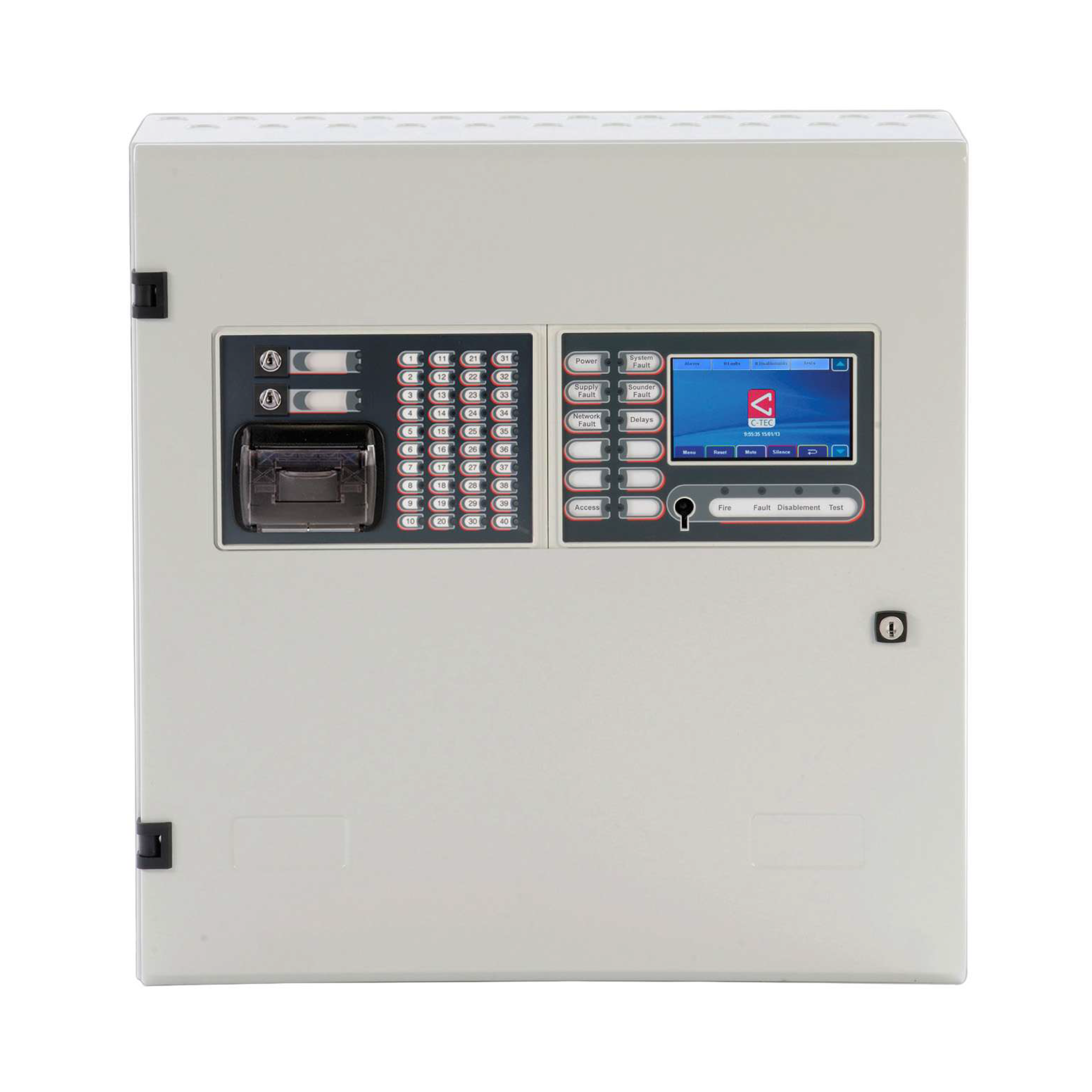

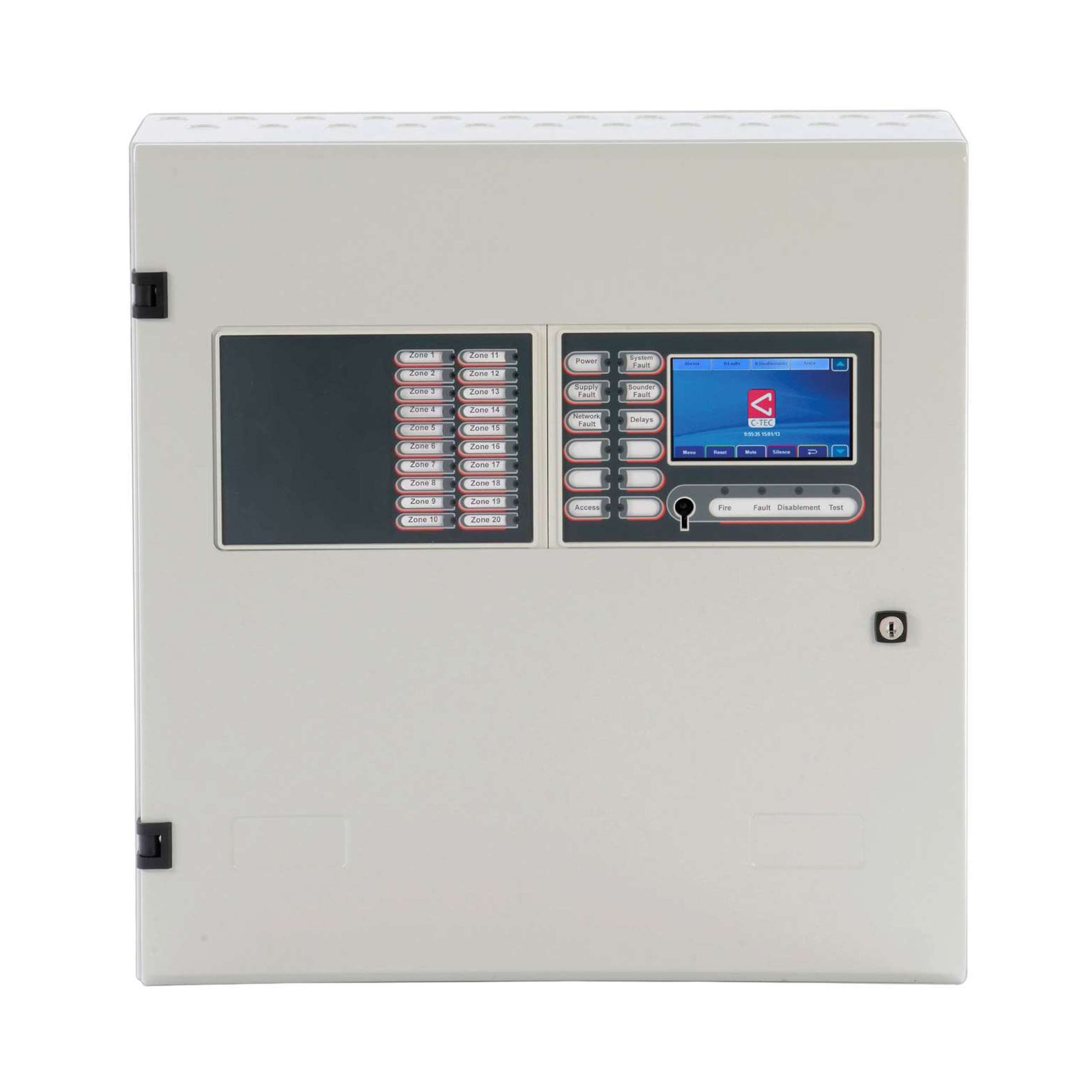

C-TEC ZFP 1 Loop 5A 20LED CAST (CTEC-ZFP1/20/CA)

Description

The C-TEC ZFP 1 Loop 5A 20LED CAST Fire Alarm Panel (CTEC-ZFP1/20/CA) is a feature-rich analogue addressable fire alarm control panel designed for use with C-TEC CAST protocol fire detection systems. This 1-loop variant combines a powerful control panel with a 5A EN54-4 power supply and 20 programmable zonal LED indicators, providing clear visual indication of fire alarm zones. It is suitable for a wide range of commercial and life-safety applications where reliable addressable fire detection and intuitive system control are required.

Built around C-TEC’s advanced CAST (C-TEC Addressable System Technology) protocol, the ZFP1/20/CA supports up to 255 addressable devices on a single loop, with a maximum loop length of 1km. The panel features rapid loop learning, flexible cause-and-effect programming and powerful diagnostic functions, helping provide efficient system management and fault identification. A full-colour touchscreen interface delivers straightforward access to system information and controls, while the 20 zonal LEDs provide additional at-a-glance status indication.

The C-TEC ZFP1/20/CA is certified to EN54-2 and EN54-4 by LPCB, with CAST system certification to EN54-13 from recognised certification bodies. With its UK-designed and manufactured construction, robust steel cabinet and extensive programming capabilities, this C-TEC addressable fire alarm panel is an excellent choice for installers and fire alarm system designers requiring a scalable, professional and dependable fire detection control solution.

Key Features

• 1-loop analogue addressable fire alarm control panel
• C-TEC CAST protocol compatible
• 5A EN54-4 internal power supply
• 20 programmable zonal LED indicators
• Supports up to 255 addressable devices per loop
• Maximum 1km loop length
• Full-colour 4.3-inch touchscreen control interface
• Rapid loop learning and powerful system diagnostics
• Flexible programmable cause-and-effect functionality
• EN54-2 & EN54-4 certified, with EN54-13 CAST system certification
