C-TEC Hush Pro Mini I/O Module Fl1 (CTEC-HP734)

Description

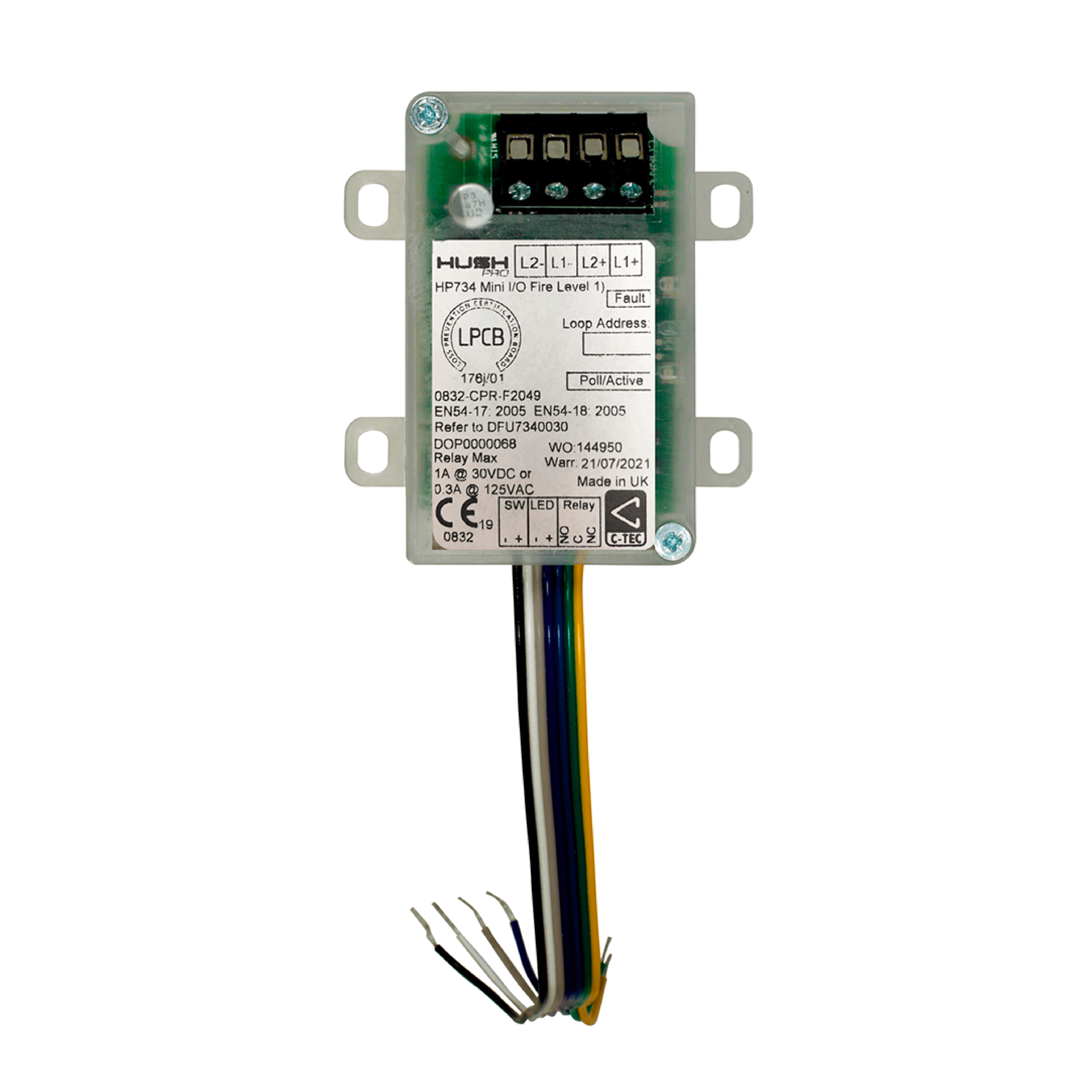

The C-TEC Hush Pro HP734 Mini I/O Module FL1 (CTEC-HP734) is a compact input/output module designed for use with C-TEC Hush-Pro BS5839-6 Grade C fire alarm controllers. Providing a monitored switch input and changeover relay output, the HP734 offers a flexible solution for integrating external devices and equipment into compatible Hush-Pro fire alarm systems. Its compact enclosure makes it particularly suitable for applications where installation space is limited.

The Hush Pro HP734 Mini I/O Module incorporates an onboard bi-directional short-circuit isolator and provides clear monitoring of input conditions, including normal, fire, short-circuit fault and open-circuit fault states. The module also features a changeover relay output and dedicated fire LED output, providing reliable signalling and control within compatible fire alarm applications. It operates across a 22–40 VDC supply range with a typical quiescent current of just 1 mA.

Certified to EN 54-17 and EN 54-18 and LPCB approved, the C-TEC HP734 provides a dependable interface solution for professional fire alarm systems. Measuring approximately 65 x 60 x 20 mm and weighing just 47 g including the terminal block and ribbon cable, its space-saving design makes it an excellent choice for applications requiring a compact, monitored I/O module. The HP734 is supplied with a 7-way ribbon cable, terminal block, trigger resistor and EOL resistor for convenient system integration.

Key Features

• C-TEC Hush Pro HP734 Mini I/O Module – Fire Level 1
• Compatible with C-TEC Hush-Pro BS5839-6 Grade C Controllers
• LPCB compliant to EN 54-17 and EN 54-18
• Integrated bi-directional short-circuit isolator
• Monitored switch input for reliable status detection
• Reports normal, fire, short-circuit and open-circuit fault conditions
• Changeover relay output with C/NO/NC contacts
• Relay rating of 1 A @ 30 VDC or 0.3 A @ 125 VAC
• Compact 65 x 60 x 20 mm enclosure for space-limited applications
• Supplied with 7-way ribbon cable, terminal block, trigger resistor and EOL resistor
