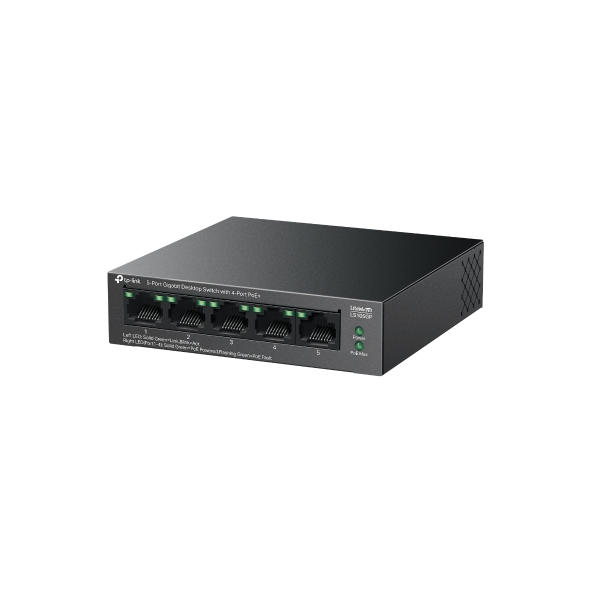

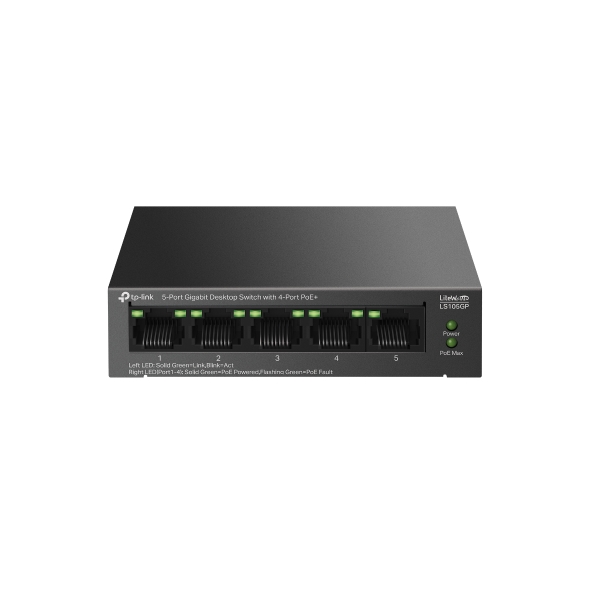

TP-Link LS105GP - 5 Port Gigabit Switch (4-Port PoE+)
TP-Link LS105GP - 5 Port Gigabit Switch (4-Port PoE+) - Image 2
TP-Link LS105GP - 5 Port Gigabit Switch (4-Port PoE+) - Image 3
TP-Link LS105GP - 5 Port Gigabit Switch (4-Port PoE+) - Image 4

TP Link

TP-Link LS105GP – 5 Port Gigabit Switch (4-Port PoE+)

SKU TPL-LS105GP

In stock

£29.16 ex VAT

£34.99 inc VAT

  • Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
  • 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Learn more about TP-Link PoE technology >

Order now for delivery Tuesday 27 October on orders over £300

  • Free next working day delivery to mainland UK on orders over £300 inc VAT placed by 11am, Monday to Friday
  • Orders under £300 inc VAT: £9.99 delivery in 2 to 3 working days.
  • 14 day returns on unused items
  • VAT invoice with every order

Installer or electrician? Apply for a trade account

Key specifications

Model
LS105LP
Standards
IEEE802.3i, IEEE802.3u, IEEE802.3x,IEEE802.3af
Interface
5 10/100 Mbps RJ45 Ports
Network Media (Cable)
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
PoE
PoE Standard
PoE Port
Port 1–4, up to 15.4 W per port
PoE Power Budget
41 W***
Auto Negotiation
Yes
Full specification

Description

Technical Specifications

Model LS105LP
Standards IEEE802.3i, IEEE802.3u, IEEE802.3x,IEEE802.3af
Interface 5 10/100 Mbps RJ45 Ports
Network Media (Cable) 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
PoE PoE Standard
PoE Port Port 1–4, up to 15.4 W per port
PoE Power Budget 41 W***
Auto Negotiation Yes
Auto MDI/MDIX Yes
Max Power Consumption 2.40 W (220 V/50 Hz no PD
connected)
46.45 W (220 V/50 Hz with 41 W
PD connected)
Max Heat Dissipation 8.15 BTU/h (220 V/50 Hz no PD
connected)
157.93 BTU/h (220 V/50 Hz with
41 W PD connected)
Forwarding Mode 62W PD connected) PD connected)
Store and Forward
Switch Capacity 1 Gbps
MAC Address Table 2k, Auto-learning, Auto-aging
Extend Mode YES (Ports 1-4)
Isolation Mode No
PoE Auto Recovery YES (Ports 1-4)
Flow Conrol Yes
Fan Quantity 0
LED Power, Link/Act, PoE Status, PoE MAX
Dimensions 3.9*3.9*1.0 in.

Additional information

Brand

TP Link
Number of ports

4-6 ports
PoE

PoE+ (30W)
Management

Unmanaged (plug and play)
Port speed

Gigabit
