The Dahua KTW02 – WiFi Villa Door Station & IP Indoor Monitor offers a complete solution for monitoring and managing visitor access at your property. This kit includes both a Wi-Fi villa door station and a 7-inch indoor monitor, providing everything you need to see, hear, and speak with visitors from anywhere in your home.
The Dahua KTW02 – WiFi Villa Door Station & IP Indoor Monitor offers a complete solution for monitoring and managing visitor access at your property. This kit includes both a Wi-Fi villa door station and a 7-inch indoor monitor, providing everything you need to see, hear, and speak with visitors from anywhere in your home.
£259.99
Share this product
The Dahua KTW02 – WiFi Villa Door Station & IP Indoor Monitor offers a complete solution for monitoring and managing visitor access at your property. This kit includes both a Wi-Fi villa door station and a 7-inch indoor monitor, providing everything you need to see, hear, and speak with visitors from anywhere in your home.

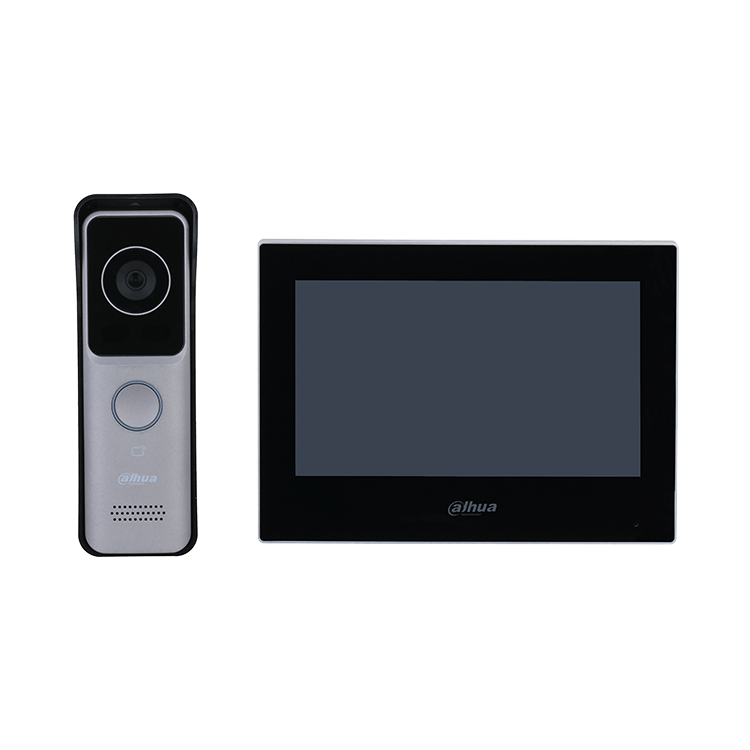

You receive two main components with the DHI-KTW02 kit. Firstly, the outdoor door station features a 2-megapixel HD camera with a wide 133° diagonal field of view. Secondly, the indoor monitor provides a large touchscreen display for easy interaction with callers.
This slim outdoor unit is built from durable PC and ABS materials, making it suitable for all weather conditions. Furthermore, the IP65 rating ensures protection against dust and water jets. Your visitors can leave video and voice messages when you’re unavailable, so you never miss an important call. Additionally, the built-in IR illumination allows clear visibility even in low-light conditions.
Unlocking your door becomes simple through multiple methods. You can grant access via the smartphone app, IC cards, or directly from the indoor monitor. As a result, managing entry for family members, guests, or deliveries is straightforward and secure.
The indoor unit features a responsive capacitive touchscreen with 1024 × 600 resolution. Moreover, it supports six alarm inputs and one alarm output, allowing integration with your existing security setup. Wi-Fi connectivity means flexible placement without the need for extensive wiring throughout your home.
Homeowners benefit greatly when expecting deliveries while working in another room. Similarly, families with elderly relatives appreciate the easy-to-use touchscreen interface. Property owners managing rental accommodation can also provide temporary IC card access to guests without physical key handovers.
| Feature | Specification |
|---|---|
| Camera | 1/2.8″ CMOS 2-MP HD |
| Field of View | H: 110° / V: 62° / D: 133° |
| Video Compression | H.264 / H.265 |
| WDR | 120 dB |
| Unlock Methods | IC Card / App / Indoor Monitor |
| Card Capacity | 3,000 |
| Storage | Micro SD (max. 256 GB) |
| Power Supply | 12-33 VDC / Standard PoE |
| Protection | IP65 |
| Operating Temperature | -40°C to +60°C |
| Dimensions | 160 × 50 × 30 mm |
| Feature | Specification |
|---|---|
| Display | 7″ TFT Capacitive Touchscreen |
| Resolution | 1024 × 600 |
| Alarm Inputs | 6 |
| Alarm Output | 1 |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz) |
| Power Supply | 12 VDC / Standard PoE |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 189.6 × 134.6 × 26 mm |
Can I unlock the door remotely using my smartphone? Yes, the Dahua DMSS app allows you to receive video calls and unlock the door from your mobile device.
Does the door station work in darkness? Absolutely. Built-in IR illumination provides clear images in low-light and night-time conditions.
How many IC cards can I register? The door station supports up to 3,000 IC cards for access control.
Is wiring required between units? Both units support Wi-Fi connectivity, reducing the need for extensive cabling. However, PoE options are also available.
What happens if I miss a visitor? Visitors can leave video and voice messages, which you can review later on the indoor monitor.
