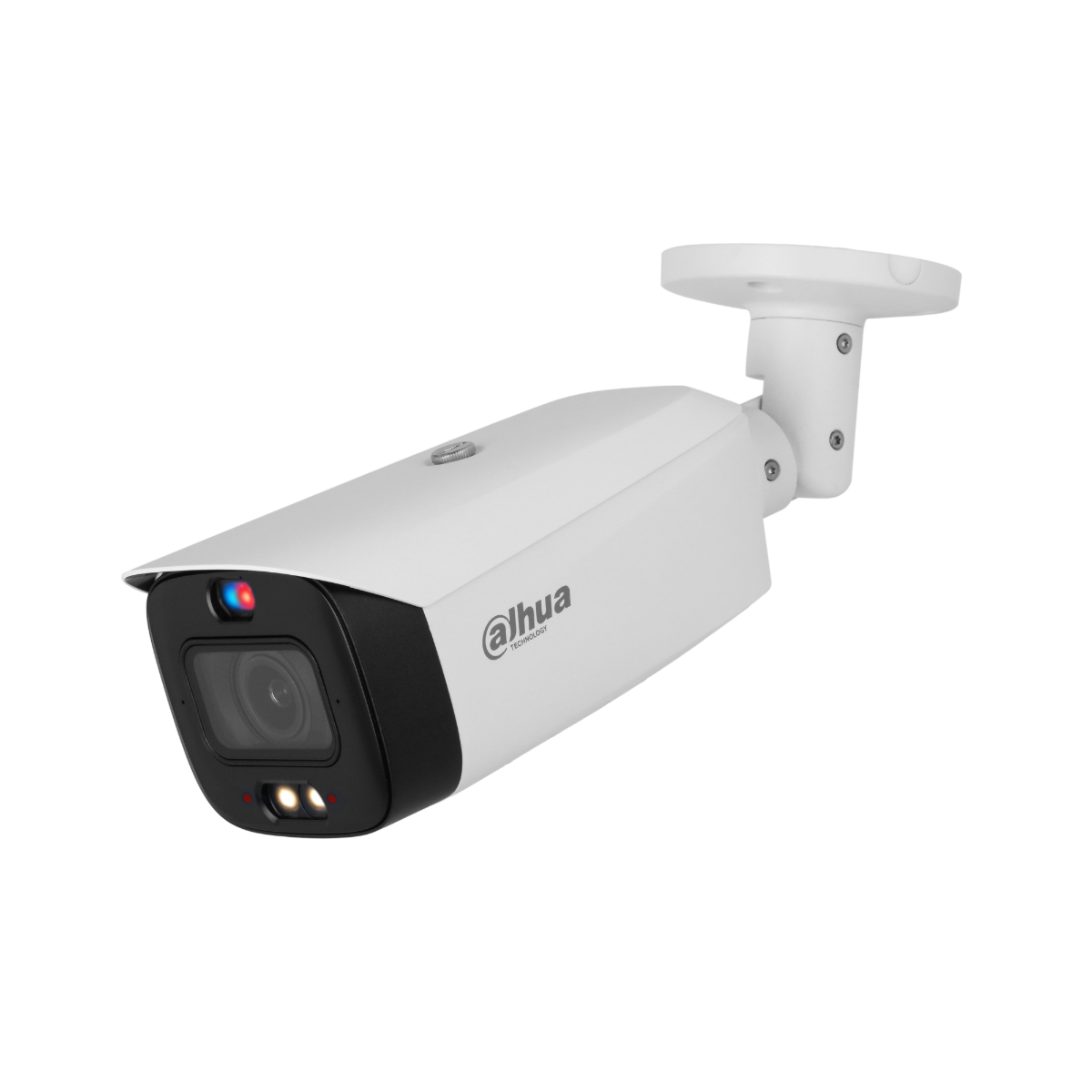

The Dahua IPC-HFW3849T1P-ZAS-PV-S5 represents a significant advancement in integrated surveillance technology, combining ultra-high-definition imaging with active deterrence capabilities in a rugged, weather-resistant design. This innovative TiOC (Three-in-One Camera) 3.0 Series camera delivers exceptional 8MP resolution video at 3840 × 2160 pixels with smooth 30fps recording, providing remarkable detail that enhances identification capabilities in security-critical applications. The camera’s motorized vari-focal lens (2.7-13.5mm) provides flexible field of view adjustment, allowing for customized coverage ranging from wide-area monitoring to focused observation of specific zones.

The camera’s Smart Dual Light system represents a significant enhancement over traditional surveillance lighting, incorporating both infrared illumination with a 50-meter range and warm white light extending to 40 meters. This dual illumination approach ensures optimal nighttime visibility under varying conditions, with IR providing discreet monitoring and white light enabling full-color imaging in darkness. This capability addresses one of the most significant challenges in nighttime surveillance by delivering consistently clear, color footage regardless of ambient lighting conditions.

Active deterrence capabilities set this camera apart from conventional surveillance systems, integrating red and blue flashing warning lights with customizable voice alarms. This proactive security approach enables immediate response to detected threats, potentially preventing security incidents before they escalate. The built-in microphone enhances the camera’s functionality by capturing audio evidence and enabling advanced audio detection capabilities that complement the visual surveillance.

The camera incorporates advanced AI-powered features from Dahua’s TiOC 3.0 platform, including Smart Motion Detection 4.0, perimeter protection, and AcuPick technology for rapid target searches. These intelligent analytics dramatically improve detection accuracy while reducing false alarms, transforming raw video data into actionable security intelligence. The camera’s ability to distinguish between humans, vehicles, and other objects enables targeted monitoring focused on genuine security concerns.

Engineered for reliable performance in demanding environments, the camera features IP67-rated construction that provides comprehensive protection against dust ingress and temporary immersion in water. This robust metal housing ensures dependable operation across diverse installation scenarios, from exposed outdoor locations to areas with potential for tampering or vandalism. The camera maintains exceptional performance in varying temperatures and weather conditions, delivering year-round reliability.

Connectivity and integration options are comprehensive, with the camera featuring alarm inputs/outputs and audio inputs/outputs for seamless integration with broader security ecosystems. These connection points enable interaction with external devices such as sirens, barriers, intercoms, and management platforms. Installation flexibility is enhanced through versatile power options, supporting both standard 12VDC connections and Power over Ethernet (PoE) for simplified single-cable deployment.

With its elegant white housing, professional appearance, and advanced feature set, the Dahua IPC-HFW3849T1P-ZAS-PV-S5 combines sophisticated technology with practical deployment considerations. As part of Dahua’s innovative TiOC 3.0 Series, this camera delivers exceptional imaging with active deterrence capabilities, making it an excellent choice for comprehensive security coverage in diverse environments.

Technical Specifications

Applications

• Retail environments requiring high-resolution monitoring and active deterrence
• Building entrances and perimeters needing detailed surveillance
• Parking lots and exterior areas requiring nighttime color imaging
• Public spaces benefiting from active deterrence capabilities
• Commercial properties requiring both monitoring and intervention options
• Warehouses and industrial facilities needing adjustable field of view
• Educational and healthcare facilities requiring high-definition surveillance
• Locations benefiting from audio capture and analysis
• Applications requiring color imaging in challenging lighting conditions
• Sites requiring reliable operation in adverse weather conditions.
