Description

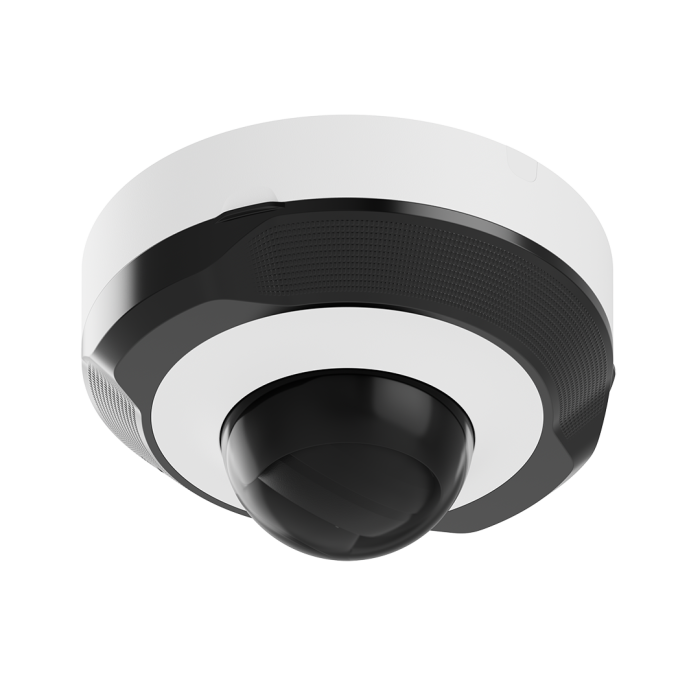

Ajax 5MP Mini DomeCam – 5MP IR Mini Dome IP Camera – 2.8mm

The Ajax 5MP Mini DomeCam is a compact dome camera that delivers clear, detailed footage for homes and businesses alike. With a 5MP sensor and infrared illumination reaching up to 35 metres, it keeps watch indoors and out, day or night. Built into a metal IP65 housing with a built-in accelerometer, it resists both the weather and tampering, while slotting neatly into your Ajax security system for easy remote monitoring.

Key Features

• 5MP CMOS sensor recording at 2880 × 1620 for sharp, detailed images
• 2.8mm lens giving a wide field of view
• Infrared illumination reaching up to 35 metres in the dark
• Built-in microphone for audio alongside video
• Metal enclosure with IP65 protection against dust and water
• Built-in accelerometer for dismantling and impact alerts
• microSD slot supporting cards up to 256GB
• 12V DC or PoE (802.3af) power supply
• Integrates with Ajax security systems for remote monitoring

Technical Specifications

Camera

• Brand: Ajax
• Colour: White
• Camera type: IP
• Style: Mini Anti Vandal Dome
• Sensor: 5MP CMOS
• Resolution: 2880 × 1620
• Illumination type: IR
• IR distance: up to 35 metres
• Built-in microphone: Yes

Lens

• Lens size: 2.8mm

Storage

• microSD slot: supports up to 256GB

Protection and Build

• IP rating: IP65
• Enclosure: Metal
• Accelerometer: Yes, for dismantling and impact alerts

Power

• Power supply: 12V DC / PoE (802.3af)

Frequently Asked Questions

What resolution does the camera record at?
It uses a 5MP CMOS sensor recording at 2880 × 1620, giving you sharp and detailed footage.

How far can it see in the dark?
Infrared illumination reaches up to 35 metres, so darker rooms and outdoor areas stay covered.

Can the camera be used outdoors?
Yes, the metal enclosure carries an IP65 rating, which protects it against dust and water for outdoor use.

What happens if someone tampers with it?
A built-in accelerometer detects dismantling and impact, so you receive an alert if anyone interferes with the camera.

How is the camera powered?
You can power it through PoE (802.3af) using a single network cable, or with a 12V DC supply where that suits your setup.
